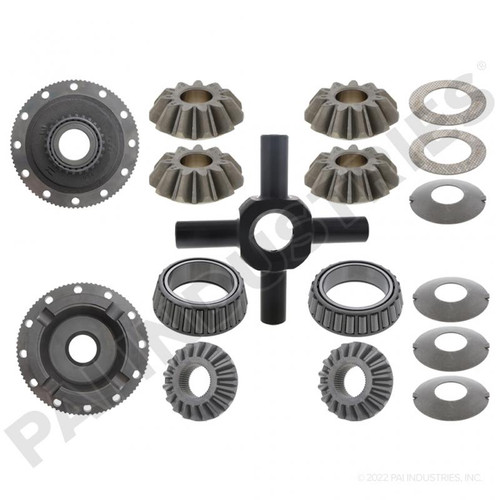

The 30KH3386A is a complete Mack differential assembly, listed in our parts manual for the Mack CRD 201 / CRD 203 differential. One number brings together the differential case set, side gears (qty 2), spider pinion gears (qty 4), a differential spider, cone bearings, a nest kit and mounting washers. A shop can rebuild the unit that splits driveshaft torque between the axle shafts and lets the drive wheels turn at different speeds without sourcing each piece. A low rumble at road speed that changes pitch while turning can point to worn carrier bearings, though a bad wheel bearing can sound much the same. Sold by Pro Gear and Transmission.
Interchanges:
- 25501652
- 30KH3386A
- Mack 30KH3386
- BDA-7022
Used in this Mack model
Features
Complete Mack differential assembly
Differential case set (BCS-7024)
Side gears (BSG-2437, qty 2) and spider pinion gears (EM74600, qty 4)
Differential spider (BSD-0791HP) and cone bearings (BBG-7330, BBG-7340)
Nest kit (808131) and washers (BWA-3072 qty 4, BWA-3071 qty 2)
Listed in the Mack CRD 201 / CRD 203 differential
Tech Specs
- Sell pack: 1 EACH
- Kit includes: Differential Case Set (BCS-7024), Cone Bearings (BBG-7330, BBG-7340), Nest Kit (808131), Side Gears (BSG-2437, qty 2), Washers (BWA-3072 qty 4, BWA-3071 qty 2), Spider Pinion Gears (EM74600, qty 4), Differential Spider (BSD-0791HP)
