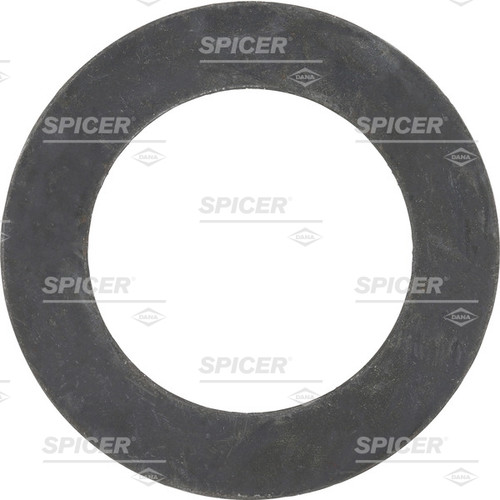

The Dana Spicer 10019998 is a differential pinion thrust washer sold as a 4-pack, designed for on-highway axle applications. Each washer measures 35.357 mm inside diameter, 68.58 mm outside diameter, and 1.581 mm thick. These dimensions are critical for correct differential gear stack clearance, so confirm measurements against your axle specs before ordering. Also catalogued under part number EH10019998. A genuine Spicer part available from Pro Gear and Transmission. Not sure this is the right washer for your differential? Give us a call to confirm proper fit for your application.
This unit is sold in packs of 4.
Features
Genuine Dana Spicer differential pinion thrust washer
Part number 10019998, also listed as EH10019998
Sold as a 4-pack for on-highway axle service
Inside diameter: 35.357 mm
Outside diameter: 68.58 mm
Thickness: 1.581 mm
Tech Specs
- Inside Diameter: 35.357 mm
- Outside Diameter: 68.58 mm
- Thickness: 1.581 mm
- Part Type: Differential Pinion Thrust Washer
- Pack Quantity: 4
- Alternate Part Number: EH10019998
