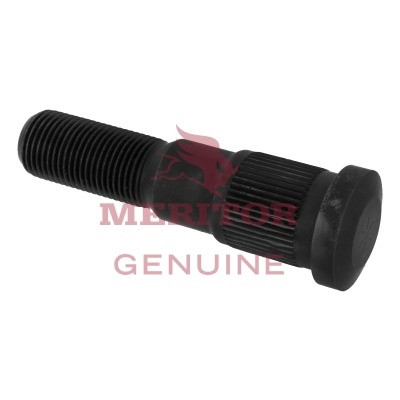

Meritor part number 20X1595 is a Grade 8 wheel end stud sold in a 4-pack, designed for heavy-duty wheel end hardware applications. The stud features a left-hand (LH) thread with a 15/16-12 UNF-2A thread form and a 0.9375 in. thread diameter at 12 threads per inch. The stepped body measures 1.222 in. at its larger diameter and 1.080 in. at its smaller diameter, with a 1.38 in. body length. Serrations run 1.00 in. long at a 1.2626 in. serration diameter. The round head measures 1.53 in. in diameter and 0.38 in. thick, with a 2-1/4 in. length from under the head. This stud is referenced under VMRS Code 018-003-009 and is used in Meritor hub and drum assembly HRWF87T9. Call us to confirm proper fit for your application.
Non returnable item
This unit is sold in packs of 4.
Features
Grade 8 strength rating for heavy-duty wheel end service
Left-hand (LH) thread direction, 15/16-12 UNF-2A thread form
Stepped body diameter: 1.222 in. / 1.080 in. with 1.38 in. body length
Serrated shank: 1.2626 in. serration diameter, 1.00 in. serration length
Round head: 1.53 in. diameter, 0.38 in. thick, 2-1/4 in. length from under head
Fits Meritor hub and drum assembly HRWF87T9; sold as a 4-pack
Tech Specs
- Thread Direction: Left-Hand (LH)
- Thread Form: 15/16-12 UNF-2A
- Thread Diameter: 0.9375 in.
- Threads per Inch: 12
- Grade: 8
- Head Style: Round
- Head Diameter: 1.53 in.
- Head Thickness: 0.38 in.
- Length from Under Head: 2-1/4 in.
- Body Length: 1.38 in.
- Body Diameter (stepped): 1.222 in. / 1.080 in.
- Serration: Serrated
- Serration Diameter: 1.2626 in.
- Serration Length: 1.00 in.
- Unit Pack: 4
- VMRS Code: 018-003-009
- Fits Meritor Assembly: HRWF87T9 (Hub and Drum Assembly)
