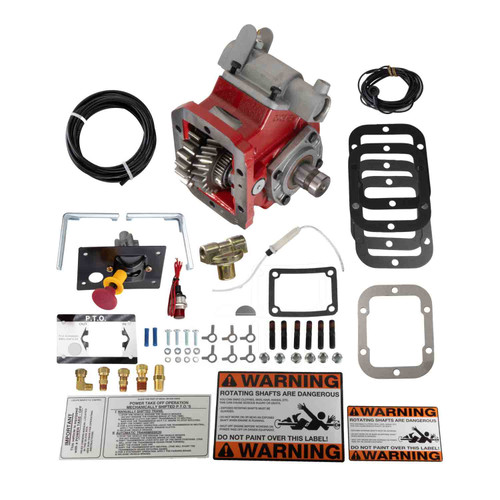

The Chelsea 442XSKNX-A3XD is a 442 Series Power Take-Off designed for 6-bolt transmission applications. The cast iron housing and tapered cone bearings on the output shaft give this series its class-leading torque capacity and service life. The 442 Series covers intermittent torque in the 201-300 lb-ft range and delivers up to 48 HP at 1,000 RPM via a 1-1/4" round output shaft with key. Shift is wire/cable or mechanical. The 360-degree rotatable output flange aids clearance in tight installations. Suited for tow trucks, dump trucks, service trucks, and aerial equipment, the 442 Series is a proven platform with eleven internal speed ratios and ten shift options across the line. Available from Pro Gear and Transmission.
Features
6-bolt mounting compatible with virtually all standard transmission bolt patterns
Cast iron housing with tapered cone bearings on the output shaft
1-1/4" round output shaft with key
Wire/cable or mechanical shift
360-degree rotatable output flange for installation flexibility
Suited for tow trucks, dump trucks, service trucks, and aerial applications
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Wire/Cable or Mechanical
- Output Shaft Type: Round shaft, 1-1/4" with key
- Series Intermittent Torque: 201-300 lb-ft (339 Nm) - check application pages for actual rating
- Series Output Power: 46-55 HP / 31-40 kW
- Shaft Power: 24 HP at 500 RPM; 48 HP at 1,000 RPM
- Housing Material: Cast iron
- Bearings: Tapered cone bearings on output shaft
Additional Information
Parts Manual: Chelsea 442 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
