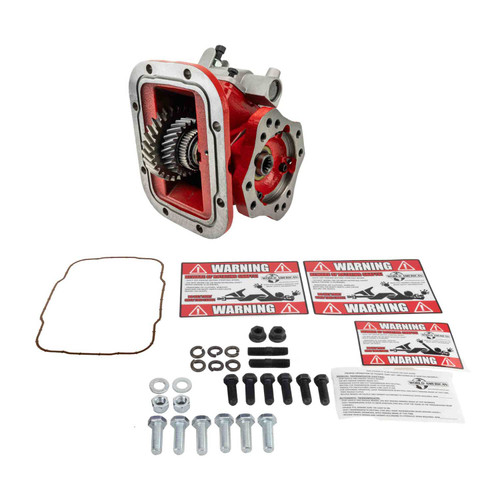

The Chelsea 489QRLZX-V3XK is an 8-bolt Power Take-Off unit from Chelsea's 489 Series, designed for most manual transmissions including Eaton Fuller, Mack, and Tremec. The one-piece cast iron housing bolts directly to the 8-bolt transmission opening, eliminating the need for an adapter plate and removing a potential leak path. The 489 Series delivers intermittent torque capacity of 201 to 300 lb-ft and uses a wire/cable mechanical shift. Output is via a round shaft with a 1-1/4-inch key. Tapered bearings replace needle bearings for greater load capacity. Common applications include utility trucks, dump trucks, and snow and ice removal equipment.
Features
8-bolt one-piece cast iron housing mounts directly to transmission opening, no adapter plate required
Wire/cable mechanical shift type
Intermittent torque rating: 201 to 300 lb-ft (301 to 400 Nm)
Output shaft: round shaft with 1-1/4-inch key
Tapered bearings for increased load-bearing capability over needle bearing designs
Fits most manual transmissions including Eaton Fuller, Mack, and Tremec
Tech Specs
- Series: Chelsea 489
- Mounting Type: 8-Bolt
- Shift Type: Wire/Cable, Mechanical
- Intermittent Torque: 201 to 300 lb-ft (301 to 400 Nm)
- Output Shaft Type: Round Shaft, 1-1/4 in. Key
- Shaft Power: 24 HP at 500 RPM, 48 HP at 1000 RPM
- Output Power (Series): 46 to 55 HP (31 to 40 kW)
- Housing Material: One-piece cast iron
- Compatible Transmissions: Eaton Fuller, Mack, Tremec (8-bolt aperture)
- Dimensions (H x W x L): 8.5 in. x 10.75 in. x 14.5 in.
Additional Information
The Chelsea 489 Series shares internal parts with the Chelsea 442 Series, giving the same 250 lb-ft torque capacity in a one-piece housing. The 489 Series offers twenty-seven output options, including Chelsea's 360-degree rotatable flange with a greaseable shaft to reduce pump shaft spline fretting and corrosion. Eleven internal speed ratios are available across the series. Typical markets include aerial equipment, vocational and municipal equipment, utility trucks, dump trucks, fire and rescue, and snow and ice removal vehicles. This part is sold by Pro Gear and Transmission.Parts Manual: Chelsea 489 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
