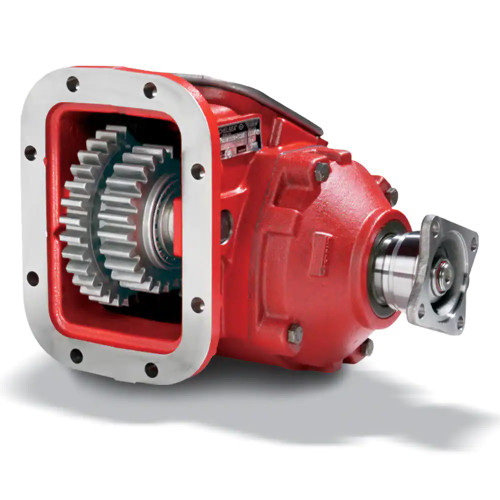

The Chelsea 885 Series Power Take-Off (PTO), part number 885XJAHX-V4XV, is an 8-bolt hydraulic PowerShift unit built for heavy-duty automatic and manual transmissions. The 885 Series is rated for high-torque applications up to 500 ft-lbs intermittent, with continuous operation supported at a 30% de-rating. Output options include an SAE C pump flange (1-1/4"-14T spline) and a 1410 Series companion flange for driveline use. The cast iron housing and heavy-duty ball bearings on the output shaft are characteristic of the 885 Series design. Shaft power output reaches 95 HP at 1,000 RPM. Compatible transmission manufacturers for the 885 Series include Allison, Eaton/Fuller, and Volvo/Mack. Pro Gear and Transmission carries this genuine Chelsea unit.
Features
8-bolt mounting for automatic and manual transmissions including Allison, Eaton/Fuller, and Volvo/Mack
Hydraulic PowerShift (PowerShift) engagement
Intermittent torque rating up to 500 ft-lbs (678 Nm)
SAE C pump flange (1-1/4"-14T spline) and 1410 Series companion flange output options
Cast iron housing with heavy-duty ball bearings on the output shaft
Shaft power: 48 HP at 500 RPM, 95 HP at 1,000 RPM
Tech Specs
- Series: Chelsea 885
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic PowerShift
- Intermittent Torque: Up to 500 ft-lbs (678 Nm)
- Continuous Operation: Yes, with 30% de-rating
- Output Type: SAE C Pump Flange, Driveline (1410 Series Companion Flange)
- Output Shaft: SAE C, 1-1/4"-14T Pump Spline
- Shaft Power: 48 HP (500 RPM), 95 HP (1,000 RPM)
- Output Power: 56+ HP (51+ kW)
- Compatible Transmissions: Allison, Eaton/Fuller, Volvo/Mack
- Housing: Cast Iron
Additional Information
Parts Manual: Chelsea 885 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
