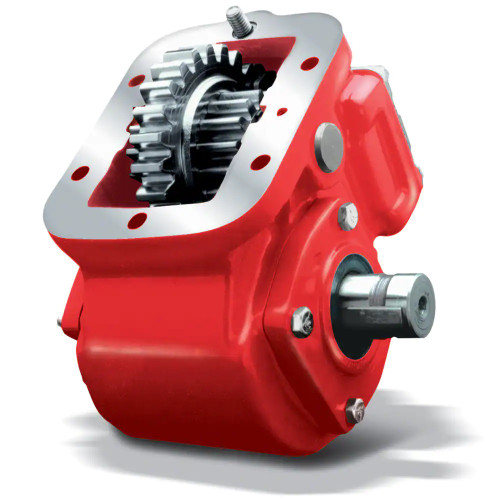

The Chelsea 221 Series Power Take-Off, part number 221XCAJP-V5RB or 221XCAJPV5RB, is a 6-bolt mounted PTO designed for low-speed, heavy-duty applications. It uses wire/cable mechanical shift and delivers up to 250 lb-ft (339 Nm) intermittent torque. The 1-1/4" round output shaft with keyway transfers shaft power rated at 24 HP at 500 RPM and 48 HP at 1000 RPM. Compatible transmissions include Allison, Eaton/Fuller, Volvo/Mack, Hino, and others. The cast iron housing features tapered cone output bearings for greater load-bearing capability compared to needle bearings. Greaseable pump shafts help reduce spline fretting and corrosion over time. A low-profile housing option is also available. Call us to confirm proper fit for your transmission and application.
Features
6-bolt mounting for Allison, Eaton/Fuller, Volvo/Mack, Hino, and other transmissions
Wire/cable mechanical shift type
1-1/4" round output shaft with keyway
Intermittent torque rating up to 250 lb-ft (339 Nm); check application pages for actual torque ratings
Shaft power: 24 HP at 500 RPM, 48 HP at 1000 RPM
Greaseable pump shafts reduce spline fretting and corrosion; standard or low-profile housing available
Tech Specs
- Intermittent Torque: Up to 250 lb-ft (339 Nm) - check application pages for actual torque ratings
- Shift Type: Wire/Cable, Mechanical
- Mounting Type: 6-Bolt
- Output Shaft Type: 1-1/4" Round with keyway
- Output Power: 46-55 HP (31-40 kW)
- Shaft Power: 24 HP (500 RPM), 48 HP (1000 RPM) / 18 kW (500 RPM), 36 kW (1000 RPM)
- Transmission Compatibility: Allison, Eaton/Fuller, Volvo/Mack, Hino, Other
