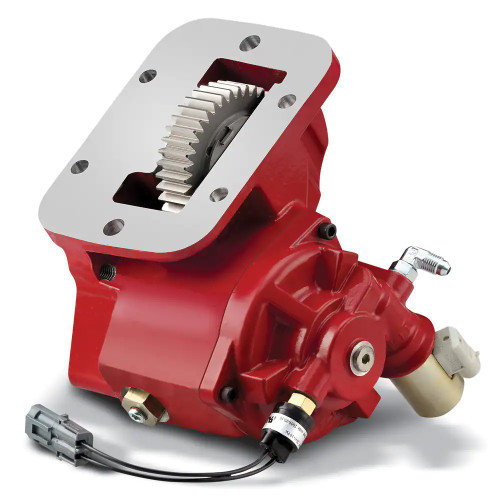

The Chelsea 249 Series Power Take-Off, part number 249FMLLX-KV14 or 249FMLLXKV14, is a Hydraulic PowerShift PTO designed for Ford 6R140 TorqShift 6 transmissions using a Ford 6-bolt mounting pattern. The 249 Series carries Chelsea's patented noise suppression system, making it the only quiet PTO engineered for this application. Output is delivered through a 1-1/4" round shaft, with the series rated at up to 200 lb-ft intermittent torque and 57 HP at 1,488 RPM. A single hose connection combined with an integrated actuation valve simplifies installation and reduces leak paths. Suited for aerial, tow and recovery, service truck, small dump, and fire and rescue applications. Call us to confirm proper fit for your application.
Features
Hydraulic PowerShift (Hydraulic) shift type for Ford 6R140 TorqShift 6 transmissions
Ford 6-bolt mounting pattern
1-1/4" round output shaft
Intermittent torque rated up to 200 lb-ft; 57 HP at 1,488 RPM
Patented noise suppression system - the only quiet PTO for the Ford Super Duty TorqShift 6
Single hose connection with integrated actuation valve reduces installation time and eliminates leak paths
Tech Specs
- Transmission Manufacturer: Ford (6R140 TorqShift 6)
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic PowerShift (Hydraulic)
- Output Shaft Type: 1-1/4" Round
- Intermittent Torque: Up to 200 lb-ft (271 Nm) - check application pages for actual torque ratings
- Output Power: 56+ HP (41-50 kW)
- Shaft Power: 57 HP / 42 kW at 1,488 RPM
