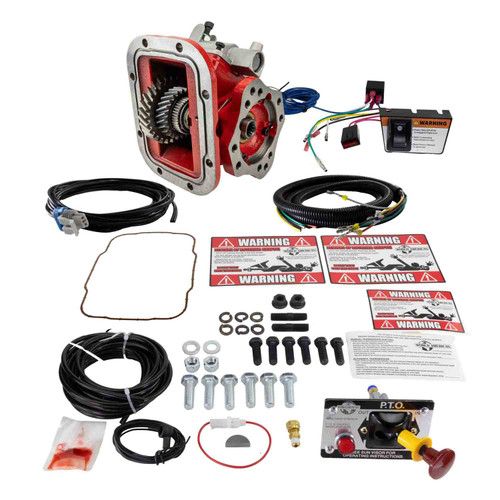

The Chelsea 489QSLZX-D3XK or 489QSLZXD3XK is a 489 Series Power Take-Off designed for manual transmissions with an 8-bolt PTO mounting aperture, including Eaton Fuller, Mack, and Tremec gearboxes. The one-piece cast iron housing bolts directly to the transmission opening without an adapter plate, eliminating a common leak path. The 489 Series delivers the same 250 lb-ft torque capacity as the Chelsea 442 Series and uses tapered bearings rather than needle bearings for improved load-bearing performance. Shift type is wire/cable mechanical. Call us to confirm proper fit for your application.
Features
Chelsea 489 Series Power Take-Off assembly
8-bolt mounting, fits Eaton Fuller, Mack, Tremec and other manual transmissions
One-piece cast iron housing eliminates adapter plate and reduces leak paths
Tapered bearings for greater load-bearing capability versus needle-bearing designs
Wire/cable mechanical shift type
Output shaft: 1-1/4" round with key
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Wire/Cable, Mechanical
- Output Shaft Type: 1-1/4" Round Shaft with Key
- Intermittent Torque (Series): 201-300 lb-ft (301-400 Nm)
- Output Power (Series): 46-55 HP (31-40 kW)
- Shaft Power: 24 HP at 500 RPM, 48 HP at 1000 RPM
- Compatible Transmissions: Eaton Fuller, Mack, Tremec (8-bolt aperture)
Additional Information
Parts Manual: Chelsea 489 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
