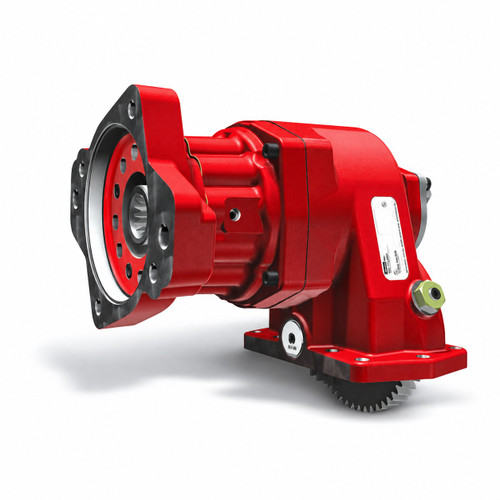

The Chelsea 877 Series Power Take-Off, part number 877XAFJW-M5RS or 877XAFJWM5RS, is a 10-bolt, constant-mesh PTO designed for Allison transmission applications with high torque demands and continuous-duty cycles. The output shaft is a 1-1/2" 10-spline configuration fitted with a 1410 companion flange. Continuous torque is rated up to 670 lb-ft (908 Nm); check application pages for your specific rating. Shaft power output reaches 64 HP at 500 RPM and 128 HP at 1,000 RPM. The compact housing helps reduce clearance problems during installation, and rotatable output flanges offer additional positioning flexibility. Wet Spline Technology is incorporated to extend service life for both the PTO and pump shaft. Common applications within this series include refuse trucks, aerial units, snow and ice equipment, and fire and rescue vehicles. Call us to confirm proper fit for your application.
Features
10-bolt mounting for Allison transmission applications
Constant-mesh shift type suited for continuous-duty and load-sense pump use
1-1/2" 10-spline output shaft with 1410 companion flange
Continuous torque up to 670 lb-ft (908 Nm); shaft power 64 HP at 500 RPM, 128 HP at 1,000 RPM
Compact housing height reduces clearance issues during installation
Wet Spline Technology to extend PTO and pump shaft service life
Tech Specs
- Mounting Type: 10-Bolt
- Transmission Manufacturer: Allison
- Shift Type: Constant Mesh
- Output Shaft Type: 1-1/2" 10-Spline with 1410 Companion Flange
- Intermittent Torque: 501+ lb-ft (501+ Nm)
- Continuous Torque: 670 lb-ft (908 Nm) - Check Application Pages for Actual Torque Ratings
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 64 HP at 500 RPM, 128 HP at 1,000 RPM (48 kW at 500 RPM, 95 kW at 1,000 RPM)
