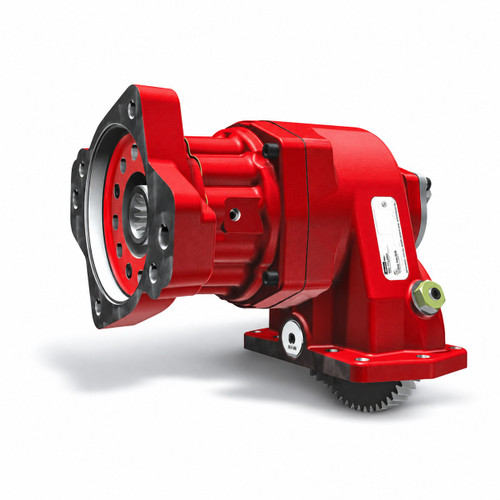

The Chelsea 877XGKVP-M5RF is a constant-mesh power take-off from the 877 Series, designed for 10-bolt Allison transmission applications with high-torque, continuous-duty requirements. The output shaft is a 1-1/2" 10-spline configuration with a 1410 companion flange. Continuous torque rating reaches 670 lb-ft (check application pages for verified torque ratings). Shaft power is rated at 64 HP at 500 RPM and 128 HP at 1000 RPM. The compact housing reduces installation clearance issues, and rotatable output flanges allow additional positioning flexibility. Wet Spline Technology is integrated to extend service life at the PTO-to-pump shaft interface. Typical markets include refuse trucks, aerial units, snow and ice equipment, and fire and rescue applications. Part also referenced as 877XGKVPM5RF. Call us to confirm proper fit for your application.
Common application markets for the 877 Series include: refuse trucks, aerial equipment, fire and rescue trucks, snow and ice vehicles, pumper cleaners, oil and gas equipment, and defense vehicles.
Eight internal gear ratios within the series provide speed flexibility across a wide range of hydraulic system requirements. Pressure lubrication is integrated into the PTO housing, requiring a single hose connection for installation.
Features
10-bolt mounting for Allison transmission applications
Constant-mesh shift type, suited for continuous-duty use with load-sense pumps
Output shaft: 1-1/2" 10-spline with 1410 companion flange
Continuous torque: 670 lb-ft; intermittent torque: 501+ lb-ft (verify on application pages)
Shaft power: 64 HP at 500 RPM, 128 HP at 1000 RPM
Wet Spline Technology and rotatable output flanges for extended pump shaft life and easier installation
Tech Specs
- Mounting Type: 10-Bolt
- Transmission Manufacturer: Allison
- Shift Type: Constant Mesh
- Output Shaft Type: 1-1/2" 10-Spline with 1410 Companion Flange
- Intermittent Torque: 501+ lb-ft / 501+ Nm
- Continuous Torque: 670 lb-ft / 908 Nm (check application pages for actual torque ratings)
- Output Power: 56+ HP / 51+ kW
- Shaft Power: 64 HP (500 RPM), 128 HP (1000 RPM) / 48 kW (500 RPM), 95 kW (1000 RPM)
- Continuous Operation: Yes
Additional Information
The Chelsea 877 Series is noted as obsolete by Parker. Buyers sourcing this part for an existing installation should call Pro Gear and Transmission to confirm availability and verify the correct replacement or direct-fit option for their application.Common application markets for the 877 Series include: refuse trucks, aerial equipment, fire and rescue trucks, snow and ice vehicles, pumper cleaners, oil and gas equipment, and defense vehicles.
Eight internal gear ratios within the series provide speed flexibility across a wide range of hydraulic system requirements. Pressure lubrication is integrated into the PTO housing, requiring a single hose connection for installation.
Parts manual and diagrams: Chelsea 877 Series PTO parts list with prices
