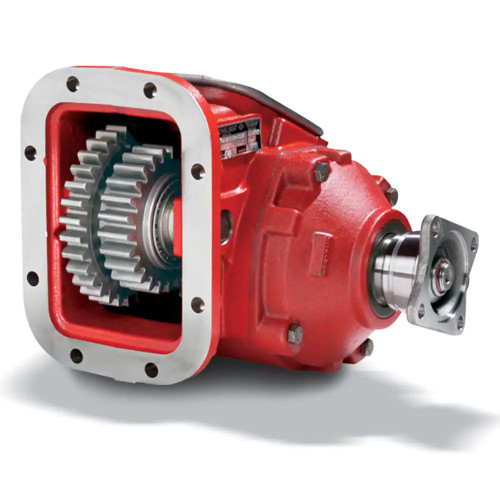

The Chelsea 885 Series Power Take-Off, part number 885XJAHP-A5XS or 885XJAHPA5XS, is a hydraulic PowerShift PTO built for heavy-duty applications on transmissions with an 8-bolt PTO aperture. Compatible with Allison, Eaton/Fuller, Volvo/Mack, and other transmission manufacturers, this unit handles intermittent torque up to 500 ft-lbs (678 Nm) and supports continuous operation with a 30% de-rating. Output options include SAE C pump flange and driveline, with shaft power rated at 48 HP at 500 RPM and 95 HP at 1,000 RPM. The cast iron housing and heavy-duty ball bearings on the output shaft suit it for oil field, bulk transport, and fire and rescue applications. Call us to confirm proper fit for your application.
Features
8-Bolt mounting for automatic and manual transmissions (Allison, Eaton/Fuller, Volvo/Mack, and others)
Hydraulic PowerShift (Air PowerShift) engagement
Intermittent torque capacity up to 500 ft-lbs (678 Nm)
Shaft power: 48 HP at 500 RPM, 95 HP at 1,000 RPM
SAE C (1-1/4 in. - 14T) pump spline and 1410 Series companion flange output options
Rugged cast iron housing with heavy-duty ball bearings on the output shaft
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Hydraulic PowerShift (Air PowerShift)
- Intermittent Torque: Up to 500 ft-lbs (678 Nm)
- Continuous Operation: Yes, with 30% de-rating
- Output Shaft Type: SAE C (1-1/4 in. - 14T) Pump Spline; 1410 Series Companion Flange
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP (500 RPM), 95 HP (1,000 RPM)
- Transmission Compatibility: Allison, Eaton/Fuller, Volvo/Mack, and others with 8-bolt PTO aperture
- Housing Material: Cast iron
- Dimensions (H x W x L): 15 in. x 12 in. x 14 in.
Additional Information
Parts Manual: Chelsea 885 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
