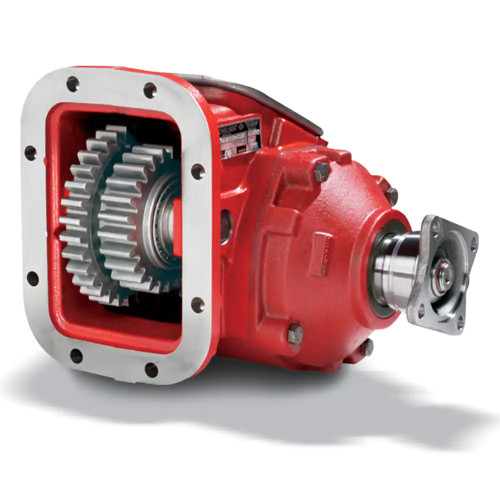

The Chelsea 885 Series Power Take-Off, part number 885XJAKX-A5XS or 885XJAKXA5XS, is an 8-bolt hydraulic PowerShift PTO built for heavy-duty applications on Allison, Eaton/Fuller, Volvo/Mack, and other compatible transmissions. The 885 Series carries an intermittent torque rating up to 500 lb-ft (678 Nm), verify actual torque against application pages for your specific setup. Output is delivered through a 1410 companion flange paired with a 1-1/2"-10T spline. Shaft power rates at 48 HP (36 kW) at 500 RPM and 95 HP (71 kW) at 1000 RPM. The series features a cast iron housing and heavy-duty ball bearings on the output shaft. Continuous operation is supported with a 30% de-rating. Call us to confirm proper fit for your truck and transmission.
Features
Hydraulic PowerShift (PowerShift) engagement on an 8-bolt mounting pattern
Intermittent torque rating up to 500 lb-ft (678 Nm) - check application pages for your actual rating
Output shaft: 1410 companion flange with 1-1/2"-10T spline
Shaft power: 48 HP (36 kW) at 500 RPM, 95 HP (71 kW) at 1000 RPM
Cast iron housing with heavy-duty ball bearings on the output shaft
Compatible transmission manufacturers: Allison, Eaton/Fuller, Volvo/Mack, and other 8-bolt aperture transmissions
Tech Specs
- Intermittent Torque: Up to 500 lb-ft (678 Nm) - check application pages for actual torque rating
- Shift Type: Hydraulic PowerShift
- Mounting Type: 8-Bolt
- Output Shaft Type: 1410 Companion Flange, 1-1/2"-10T Spline with 1410 Flange
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP (36 kW) at 500 RPM, 95 HP (71 kW) at 1000 RPM
- Continuous Operation: Yes, with 30% de-rating
- Compatible Transmissions: Allison, Eaton/Fuller, Volvo/Mack, Other 8-bolt aperture
Additional Information
Parts Manual: Chelsea 885 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
