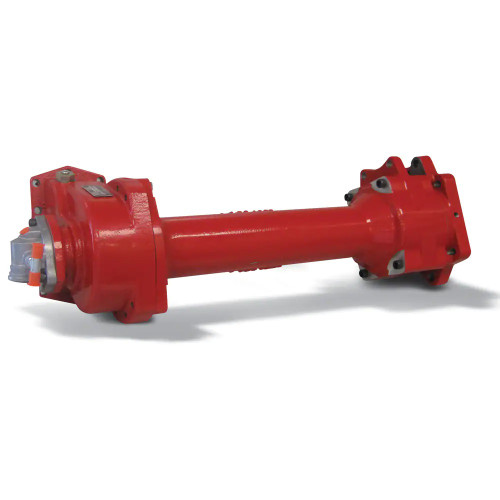

The Chelsea 897 Series Power Take-Off, part number 897MFFJW-M5XS or 897MFFJWM5XS, is a constant-engagement PTO engineered specifically for Allison 3000 and 4000 Series transmissions. The 10-bolt mounting design positions the SAE C output flange at the rear of the transmission, moving the pump interface rearward to improve clearance between the pump and the frame rail. A one-piece main shaft eliminates input splines between the PTO body and the output extension, and wet spline technology at the output extends service life under demanding duty cycles. Common applications include aerial trucks, fire and rescue apparatus, refuse trucks, and truck cranes. Call us to confirm proper fit for your application.
Features
Designed for Allison 3000 and 4000 Series transmissions, 10-bolt mounting
Constant-mesh (constant engagement) shift type for continuous operation
SAE C output flange and SAE C output shaft type
Wet spline output extends PTO and pump shaft life in high-demand conditions
Rear-mounted pump flange improves clearance between pump and frame rail
One-piece main shaft eliminates input splines between PTO body and output extension
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh (Constant Engagement)
- Input Gear Designator: FJ - Allison World Transmissions
- Output Shaft Type: SAE C
- Outlet Flange Type: SAE C
- Lubricant/Output Option: Wet Spline
- Intermittent Torque Rating: 501+ lb-ft
- Output Power: 56+ HP
- Transmission Fit: Allison 3000 Series, Allison 4000 Series
Additional Information
Parts Manual: Chelsea 897 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
