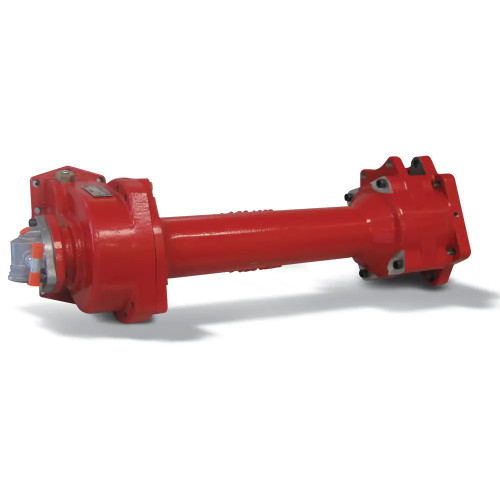

The Chelsea 897REFJW-M5AF or 897REFJWM5AF is a constant-mesh power take-off from the Chelsea 897 Series, engineered specifically for Allison 3000 and 4000 Series transmissions. The 897 Series moves the PTO pump mounting flange to the rear of the transmission, tucking the housing and gear section tightly against the transmission for improved pump clearance within the frame rail. The output uses Chelsea's wet spline technology, which extends service life on both the PTO and pump shaft in demanding duty cycles. Mounting is via a 10-bolt pattern with an SAE C outlet flange and SAE C output shaft. The main shaft is one-piece, eliminating the input splines between the PTO and any output extension. This is a genuine Chelsea part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Chelsea 897 Series constant-mesh (constant engagement) design
Engineered for Allison 3000 and 4000 Series transmissions
10-bolt mounting pattern with additional rear-of-transmission support bracket
SAE C outlet flange and SAE C output shaft type
Wet spline output extends PTO and pump shaft life in high-demand applications
One-piece main shaft eliminates input splines between PTO body and output
Suited for aerial trucks, fire and rescue, refuse trucks, and truck cranes
Tech Specs
- Series: Chelsea 897
- Part Number: 897REFJW-M5AF or 897REFJWM5AF
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh (Constant Engagement)
- Outlet Flange Type: SAE C
- Output Shaft Type: SAE C
- Input Gear Designator: FJ - Allison World Transmissions
- Lubricant/Output: W - Wet Spline
- Transmission Fit: Allison 3000 Series, Allison 4000 Series
- Intermittent Torque (Series): 501+ lb-ft
- Output Power (Series): 56+ HP
- Dimensions (H x W x L): 13 in. x 11 in. x 31 in.
Additional Information
Parts Manual: Chelsea 897 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
