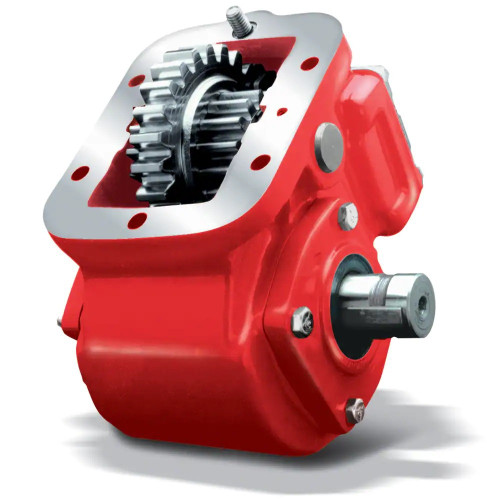

The Chelsea 221REAJX-A3XR or 221REAJXA3XR is a 6-bolt power take-off assembly from Chelsea's 221 Series, built around a cast iron housing with tapered cone output bearings for demanding low-speed, heavy-duty service. Output is through a 1-1/4" round shaft with key, driven by a wire/cable mechanical shift. Intermittent torque is rated at 250 lb-ft (339 Nm); shaft power reaches 48 HP at 1,000 RPM and 24 HP at 500 RPM. Transmission compatibility spans Allison, Eaton/Fuller, Volvo/Mack, and Hino platforms. The 221 Series is available in a standard or low-profile housing, and greaseable pump shafts reduce spline fretting and corrosion over time. Call us to confirm proper fit for your application.
Features
6-bolt mounting for Allison, Eaton/Fuller, Volvo/Mack, and Hino transmissions
Wire/cable mechanical shift engagement
1-1/4" round output shaft with key
Intermittent torque rated at 250 lb-ft (339 Nm); verify actual rating on application pages
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Greaseable pump shafts to reduce spline fretting and corrosion
Tech Specs
- Intermittent Torque: 250 lb-ft / 339 Nm (check application pages for actual torque ratings)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 46-55 HP / 31-40 kW
- Output Shaft Type: 1-1/4" Round with Key
- Mounting Type: 6-Bolt
- Transmission Compatibility: Allison, Eaton/Fuller, Volvo/Mack, Hino
- Shaft Power: 24 HP at 500 RPM / 48 HP at 1,000 RPM (18 kW / 36 kW)
- Housing Options: Standard or Low-Profile
