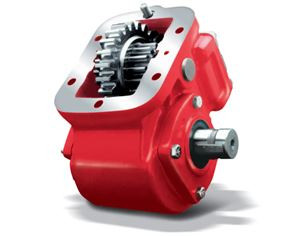

The Chelsea 221 Series Power Take-Off, part number 221XEAHX-A3RA or 221XEAHXA3RA, is a 6-bolt mounted PTO designed for low-speed, heavy-duty applications including dump trucks, tow and recovery, and aerial equipment. It mounts to transmissions from Allison, Eaton/Fuller, Volvo/Mack, Hino, and others. The wire/cable mechanical shift and 1-1/4" round output shaft with keyway deliver output power in the 46-55 HP range, with shaft power rated at 24 HP at 500 RPM and 48 HP at 1,000 RPM. The cast iron housing is available in standard or low-profile configuration. Greaseable pump shafts help reduce spline fretting and corrosion over time. Call us to confirm proper fit for your application.
Features
6-bolt mounting type for Allison, Eaton/Fuller, Volvo/Mack, Hino, and other transmission applications
Wire/cable mechanical shift operation
1-1/4" round output shaft with key, suited for low-speed heavy-duty use
Intermittent torque rating up to 250 lb-ft (339 Nm); verify actual rating on application pages
Output power 46-55 HP, with shaft power of 24 HP at 500 RPM and 48 HP at 1,000 RPM
Greaseable pump shafts to reduce spline fretting and corrosion; available in standard or low-profile housing
Tech Specs
- Intermittent Torque: 201-300 lb-ft / 301-400 Nm (250 lb-ft / 339 Nm, check application pages for actual torque ratings)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 46-55 HP / 31-40 kW
- Output Shaft Type: 1-1/4" Round with Key
- Transmission Manufacturer: Allison, Eaton/Fuller, Volvo/Mack, Hino, Other
- Mounting Type: 6-Bolt
- Shaft Power: 24 HP (500 RPM), 48 HP (1,000 RPM) / 18 kW (500 RPM), 36 kW (1,000 RPM)
