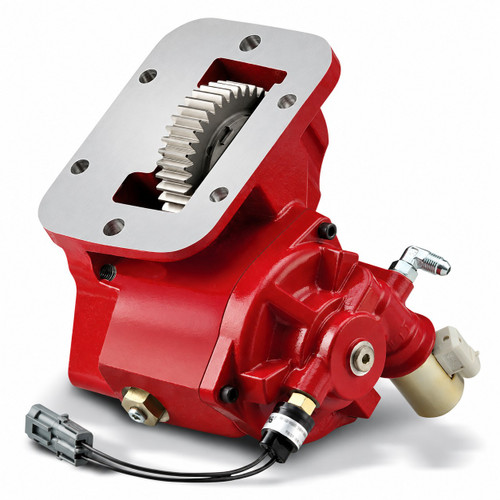

The Chelsea 249FMLLX-B2XP or 249FMLLXB2XP is a 249 Series Power Take-Off assembly built for Ford Super Duty trucks equipped with the 6R140 transmission, mounted via a Ford 6-bolt pattern. It uses Hydraulic PowerShift actuation with a single-hose connection and an integrated actuation valve, which simplifies installation and reduces leak paths. Output is rated at 56+ HP (42 kW at 1,488 RPM) with an intermittent torque rating up to 200 lb-ft. The 1-1/4" round output shaft fits standard applications for 2WD and 4WD. Chelsea's patented noise-suppression system makes this the only quiet PTO for the Ford Super Duty TorqueShift 6, requiring no special installation tools. Call us to confirm proper fit for your specific application.
Features
Ford 6-bolt mounting for Ford Super Duty 6R140 series transmission
Hydraulic PowerShift actuation with single-hose connection and integrated actuation valve
1-1/4" round output shaft
Output rated at 56+ HP (42 kW at 1,488 RPM); intermittent torque up to 200 lb-ft
Patented Chelsea noise-suppression system - the only quiet PTO engineered for the Ford Super Duty TorqueShift 6
No special installation tools required; compatible with 2WD and 4WD applications
Tech Specs
- Transmission Manufacturer: Ford
- Mounting Type: Ford 6-Bolt
- Shift Type: Hydraulic PowerShift
- Output Shaft Type: 1-1/4" Round
- Output Power: 56+ HP (41-50 kW)
- Shaft Power at 1,488 RPM: 57 HP (42 kW)
- Intermittent Torque: Up to 200 lb-ft (271 Nm) - check application pages for actual torque ratings
- Mounting Bolt Hole Quantity: 6
