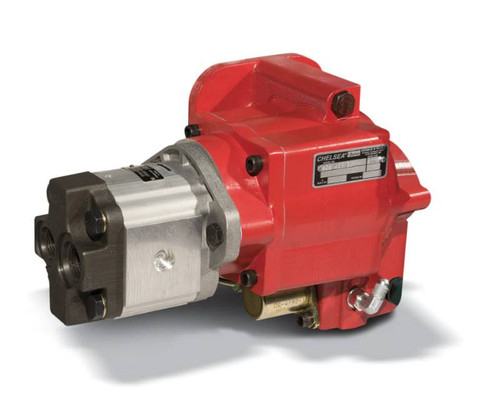

The Chelsea 252 Series Power Take-Off Assembly, part number 252RDKUX-B51126 or 252RDKUXB51126, is a hydraulic-shift PTO built for Allison 1000/2000/2400 series automatic transmissions and RAM trucks with Aisin automatic transmissions. It mounts via a 6-bolt pattern and delivers a 1-inch round output shaft with a 1/4-inch keyway. Shaft power is rated at 11 HP (500 RPM) and 23 HP (1000 RPM), with intermittent torque in the 101-200 lb-ft range (verify your application-specific rating on the Chelsea application pages). An integrated cartridge valve and single hose connection simplify installation, and the housing is designed to pass through a floor access panel without dropping the exhaust system. Call us to confirm proper fit for your application.
Features
Hydraulic shift operation
6-bolt mounting pattern
1-inch round output shaft with 1/4-inch key
Shaft power: 11 HP at 500 RPM, 23 HP at 1000 RPM
Intermittent torque: 101-200 lb-ft (confirm application-specific rating via Chelsea application pages)
Single hose connection with integrated cartridge valve
Controlled Compression Interface Gasket
Weather-tight electrical connectors
Housing designed to fit through floor access panel without exhaust removal
Tech Specs
- Shift Type: Hydraulic
- Mounting Type: 6-Bolt
- Output Shaft Type: 1" Round with 1/4" Key
- Transmission Manufacturer: Allison, RAM
- Output Power: 25 HP and below, 20 kW and below
- Shaft Power: 11 HP at 500 RPM, 23 HP at 1000 RPM; 9 kW at 500 RPM, 17 kW at 1000 RPM
- Intermittent Torque: 101-200 lb-ft / 101-200 Nm (120 lb-ft / 163 Nm - check application pages for actual rating)
