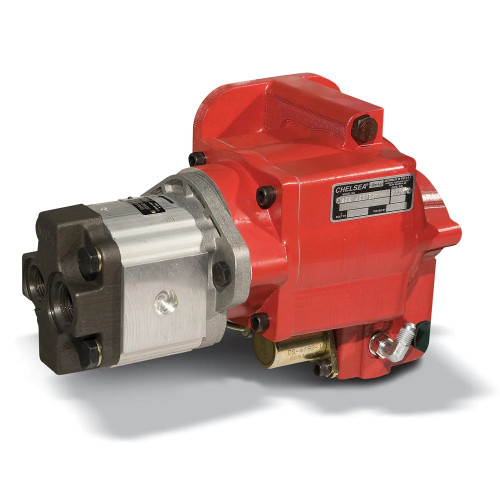

The Chelsea 252 Series Power Take-Off Assembly, part number 252RMKUX-B5P71 or 252RMKUXB5P71, is a hydraulic-shift PTO designed for Allison and RAM automatic transmissions. It mounts via a 6-bolt pattern and delivers a 1-inch round output shaft with a 1/4-inch key. Shaft power output is 11 HP at 500 RPM and 23 HP at 1000 RPM, with an intermittent torque rating in the 101-200 lb-ft range (check application pages for your specific torque figure). The integrated cartridge valve and single hose connection simplify installation, and weather-tight electrical connectors protect the shift circuit. The 252 Series housing is sized to pass through a standard floor access panel without dropping the exhaust system. Call us to confirm proper fit for your transmission and chassis.
Features
Hydraulic shift with single hose connection and integrated cartridge valve
6-bolt mounting pattern for Allison and RAM automatic transmissions
1" round output shaft with 1/4" key
Shaft power: 11 HP at 500 RPM, 23 HP at 1000 RPM
Intermittent torque rating: 101-200 lb-ft (verify actual rating on Chelsea application pages)
Controlled Compression Interface Gasket and weather-tight electrical connectors
Tech Specs
- Shift Type: Hydraulic
- Mounting Type: 6-Bolt
- Transmission Fitment: Allison, RAM
- Output Shaft Type: 1" Round with 1/4" Key
- Output Power: 25 HP and below, 20 kW and below
- Shaft Power: 11 HP (500 RPM), 23 HP (1000 RPM), 9 kW (500 RPM), 17 kW (1000 RPM)
- Intermittent Torque: 101-200 lb-ft / 101-200 Nm (120 lb-ft / 163 Nm nominal - check application pages for actual rating)
