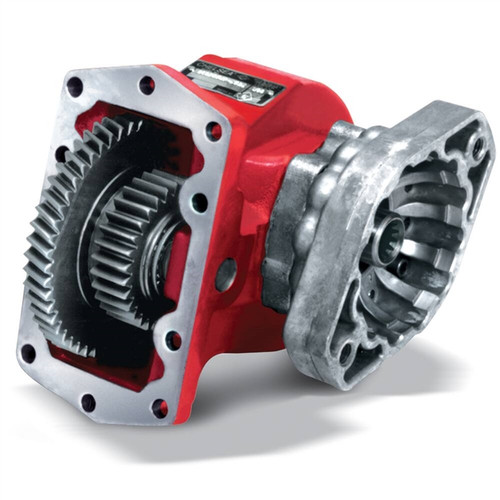

The Chelsea 267 Series Power Take-Off, part number 267SBKVP-M3XQ or 267SBKVPM3XQ, is a 10-bolt constant mesh PTO built to fit Allison automatic transmissions. It delivers shaft power of 32 HP at 500 RPM and 64 HP at 1000 RPM, with an intermittent torque rating in the 301-400 lb-ft range (check application pages for your specific torque value). The output shaft is a 1-1/4" round shaft with keyway. The 267 Series exceeds the torque capacity of a 6-bolt PTO while maintaining a tighter 10-bolt seal pattern, making it a practical choice for refuse, snow and ice removal, yard jockey, and aerial applications that run variable displacement or load-sensing piston pumps. The SuperTorque option provides up to 20% additional torque capacity over a standard 267 Series unit. Call us to confirm proper fit for your application.
Features
10-bolt mounting pattern fits Allison automatic transmissions
Constant mesh shift type - no clutching required to engage
1-1/4" round output shaft with keyway
Shaft power: 32 HP at 500 RPM, 64 HP at 1000 RPM
360-degree rotatable output flange to improve installation clearance
Wet spline or greaseable shaft options available to extend PTO and pump shaft service life
SuperTorque gears available for up to 20% more torque capacity
Tech Specs
- INTERMITTENT TORQUE: 301-400 lb-ft / 401-500 Nm (335 lb-ft / 454 Nm - check application pages for actual torque ratings)
- MOUNTING TYPE: 10-Bolt
- OUTPUT POWER: 56+ HP / 41-50 kW
- OUTPUT SHAFT TYPE: 1-1/4" Round with keyway
- TRANSMISSION MANUFACTURER: Allison
- SHIFT TYPE: Constant Mesh
- SHAFT POWER: 32 HP at 500 RPM, 64 HP at 1000 RPM / 24 kW at 500 RPM, 48 kW at 1000 RPM
- CONTINUOUS OPERATION: Yes, with 30% de-rating
