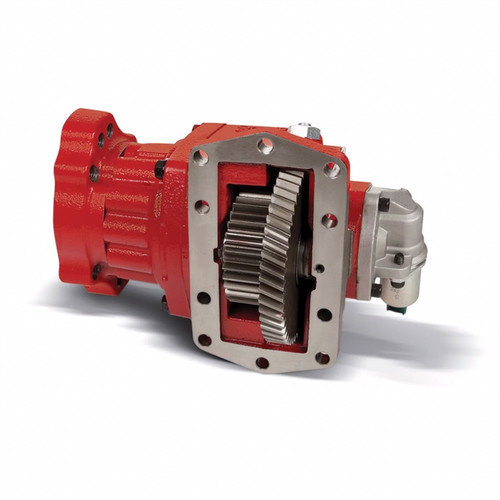

281GBFJP-B3RF Chelsea PTO Assembly

The Chelsea 281 Series Power Take-Off, part number 281GBFJP-B3RF or 281GBFJPB3RF, is a hydraulically shifted hot-shift PTO designed for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar transmissions. The 281 Series is an evolution of the Chelsea 280 Series, carrying forward a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap, and an enhanced clutch pack with 80% thicker steel discs to resist premature tooth wear. Nine speed ratios cover both low and high-speed applications. Rotatable cast-iron flanges reduce interference at pump mounting. Electronic Overspeed Control (EOC) and an optional wet-spline lubrication system are available within the series. Call us to confirm proper fit for your transmission and application.

Features

10-bolt mounting for Allison and Caterpillar automatic transmissions
Hydraulic PowerShift (hot-shift) operation for shifting under load
Ductile iron bearing cap, 117% stronger than gray iron
O-ring sealing between housing and bearing cap improves clamp load and reduces vibrational effects
Enhanced clutch pack with 80% thicker steel discs for reduced premature tooth wear
Nine speed ratios including low and high speeds
Positive stop on driveline outputs eliminates oil seal damage from coupling
Wet spline lubrication option provides 7 to 10 times greater shaft life
SmartStart option reduces shock load at start-up
Electronic Overspeed Control (EOC) protects driven equipment

Tech Specs

• Mounting Type: 10-Bolt
• Shift Type: Hydraulic (PowerShift / Hot-Shift)
• Compatible Transmissions: Allison and Caterpillar automatic transmissions (10-bolt aperture)
• Continuous Operation: Yes
• Series Continuous Torque: 390 lb-ft (529 Nm) - verify actual torque rating for specific application
• Output Types Available: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
• Output Shaft Options: 1-1/4" round with 5/16" key (SmartStart), 3/4"-11T pump spline, SAE B 7/8"-13T pump spline, SAE C 1-1/4"-14T pump spline, DIN 5462 pump spline, 1410 companion flange, DIN 120 flange, DIN 100 flange
• Speed Ratios: Nine (includes low and high speeds)
• Lubrication: Pressure lube or wet spline option
• Series Shaft Power: 37 HP at 500 RPM, 74 HP at 1000 RPM (28 kW at 500 RPM, 55 kW at 1000 RPM)
• Markets: Fire and Rescue, Truck Cranes, Pumper Cleaner, Refuse

Additional Information

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
