Chelsea PTO Assembly P/N: 281GGFJP-N5RK or 281GGFJPN5RK

281GGFJP-N5RK Chelsea PTO Assembly

Chelsea

Listing Price: $6,510.69
Sale Price: $3,580.88

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GGFJPN5RK
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added

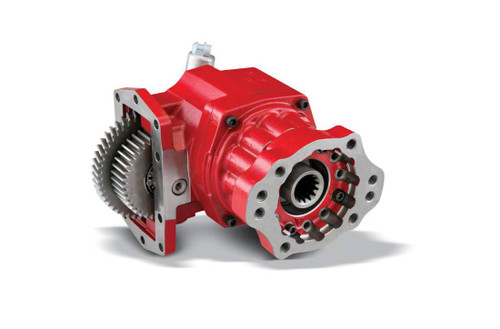

The Chelsea 281 Series Power Take-Off, part number 281GGFJP-N5RK or 281GGFJPN5RK, is a hydraulically shifted hot-shift PTO engineered for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar applications. It mounts directly to the transmission and delivers continuous-duty torque rated up to 390 lb-ft (529 Nm) at the series level, with nine available speed ratios spanning both low and high ranges. The 281 Series is an evolution of the 280 Series, adding a ductile iron bearing cap 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap, and 80% thicker steel discs in the clutch pack to resist premature tooth wear. Wet spline lubrication on this unit provides 7 to 10 times greater shaft life. Call us to confirm proper fit for your specific transmission and application.

Features

Chelsea 281 Series hydraulic PowerShift (hot-shift) PTO for 10-bolt automatic transmissions including Allison and Caterpillar
Ductile iron bearing cap rated 117% stronger than gray iron for improved durability over the predecessor 280 Series
O-ring sealing configuration between housing and bearing cap to improve clamp load and reduce vibrational effects
Enhanced clutch pack with steel discs 80% thicker than the prior design to resist premature tooth wear
Nine speed ratios available, including low and high speeds; continuous-duty rated at up to 390 lb-ft (529 Nm) series-level
Wet spline lubrication option extends shaft life 7 to 10 times; SmartStart reduces shock load at engagement; Electronic Overspeed Control (EOC) protects driven equipment

Tech Specs

  • Mounting Type: 10-Bolt
  • Shift Type: Hydraulic (PowerShift / Hot-Shift)
  • Compatible Transmissions: Allison and Caterpillar automatic transmissions with 10-bolt aperture
  • Continuous Torque (Series): 390 lb-ft (529 Nm)
  • Speed Ratios: Nine ratios including low and high speeds
  • Lubrication: Wet Spline (W) option
  • Continuous Operation: Yes

Additional Information

Chelsea PTO 281 Series model break down

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
