Chelsea PTO Assembly P/N: 281GMFJP-B5BA or 281GMFJPB5BA

281GMFJP-B5BA Chelsea PTO Assembly

Chelsea

Listing Price: $3,912.69
Sale Price: $2,711.49

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GMFJPB5BA
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added

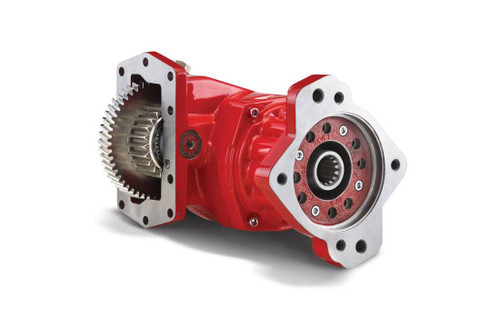

The Chelsea 281 Series Power Take-Off, part number 281GMFJP-B5BA or 281GMFJPB5BA, is a hydraulically shifted hot-shift PTO built for automatic transmissions with a 10-bolt aperture, commonly fitted to Allison transmissions. It mounts on applications in fire and rescue, refuse, truck cranes, and pumper-cleaner trucks. The 281 Series is an evolution of the Chelsea 280 Series, adding a ductile iron bearing cap rated 117% stronger than gray iron, an o-ring seal between the housing and bearing cap, and an 80% thicker clutch pack to resist premature wear caused by modern engine vibration. Nine speed ratios cover both low and high ranges. Electronic Overspeed Control (EOC) is included for driven-equipment protection. Call us to confirm proper fit for your application.

Features

Hydraulic PowerShift (hot-shift) operation for Allison automatic transmissions, 10-bolt aperture mount
Ductile iron bearing cap, 117% stronger than gray iron, replacing the predecessor gray-iron cap
O-ring sealing configuration between housing and bearing cap improves clamp load and resists vibration
80% thicker steel discs in the clutch pack to resist premature tooth wear
Nine speed ratios including low and high ranges; single continuous-duty torque rating
Wet Spline Lubrication option provides 7 to 10 times greater shaft life; SmartStart reduces shock load at engagement; Electronic Overspeed Control (EOC) protects driven equipment

Tech Specs

  • Mounting Type: 10-bolt aperture
  • Shift Type: Hydraulic PowerShift (hot-shift)
  • Compatible Transmission Manufacturer: Allison
  • Continuous Operation: Yes
  • Speed Ratios: Nine (includes low and high)
  • Output Types: SAE B pump flange, SAE C pump flange, ISO 7652 pump flange, driveline
  • Lubrication Options: Pressure lube (P), Wet spline (W)
  • Bearing Cap Material: Ductile iron (117% stronger than gray iron)
  • Clutch Pack: 80% thicker steel discs vs. predecessor 280 Series
  • Electronic Overspeed Control (EOC): Included
  • SmartStart: Available for applicable configurations
  • Markets: Fire and rescue, refuse, truck cranes, pumper-cleaner

Additional Information

Chelsea PTO 281 Series model break down

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
