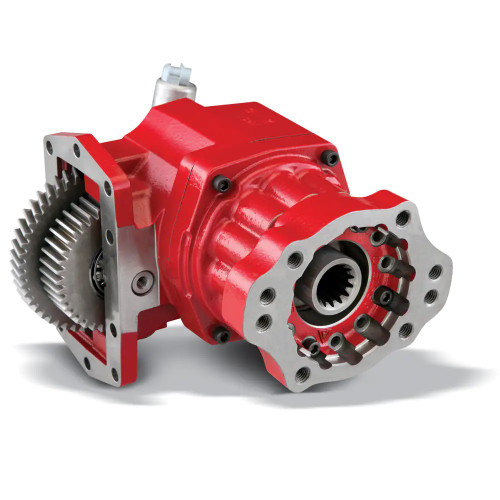

Chelsea PTO Assembly P/N: 281GMFJP-D5RY or 281GMFJPD5RY

281GMFJP-D5RY Chelsea PTO Assembly

Chelsea

Listing Price: $7,278.78
Sale Price: $4,003.33

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GMFJPD5RY
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 281 Series Power Take-Off 281GMFJP-D5RY or 281GMFJPD5RY is a hydraulically shifted, hot-shift PTO engineered for automatic transmissions with a 10-bolt aperture, commonly used on Allison transmissions. It is an evolution of the 280 Series, featuring a ductile iron bearing cap rated 117% stronger than gray iron, an o-ring sealing configuration between the housing and bearing cap for improved clamp load, and an 80% thicker steel disc clutch pack to resist premature tooth wear. Rotatable cast-iron flanges reduce interference fit issues, while the Wet Spline Lubrication option extends shaft life by 7 to 10 times. SmartStart reduces shock load at engagement, and Electronic Overspeed Control (EOC) protects driven equipment. Nine speed ratios cover both low and high ranges. A genuine Chelsea part from Pro Gear and Transmission. Call us to confirm proper fit for your application.

Features

Chelsea 281 Series hydraulic hot-shift (PowerShift) PTO, 10-bolt aperture mount for Allison automatic transmissions
Ductile iron bearing cap, 117% stronger than gray iron predecessor
O-ring sealing configuration between housing and bearing cap reduces vibrational effects and improves clamp load
80% thicker steel discs in the clutch pack to resist premature tooth wear
Nine speed ratios including low and high-speed ranges
Wet Spline Lubrication option provides 7 to 10 times greater shaft life
SmartStart reduces shock load at start-up; Electronic Overspeed Control (EOC) protects driven equipment
Positive Stop for driveline outputs eliminates oil seal damage from coupling

Tech Specs

  • Mounting Type: 10-Bolt
  • Shift Type: Hydraulic (PowerShift / Hot Shift)
  • Transmission Compatibility: Allison automatic transmissions (10-bolt aperture)
  • Speed Ratios: Nine, including low and high speeds
  • Continuous Operation: Yes
  • Bearing Cap Material: Ductile Iron (117% stronger than gray iron)
  • Clutch Pack: Steel discs, 80% thicker than prior 280 Series
  • Lubrication Options: Pressure Lube (P) or Wet Spline (W)
  • Output Types: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
  • Electronic Overspeed Control (EOC): Included

Additional Information

Chelsea PTO 281 Series model break down

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
