Chelsea PTO Assembly P/N: 281GPFJW-B5RY or 281GPFJWB5RY

281GPFJW-B5RY Chelsea PTO Assembly

Chelsea

Listing Price: $4,662.90
Sale Price: $3,413.24

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GPFJWB5RY
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added

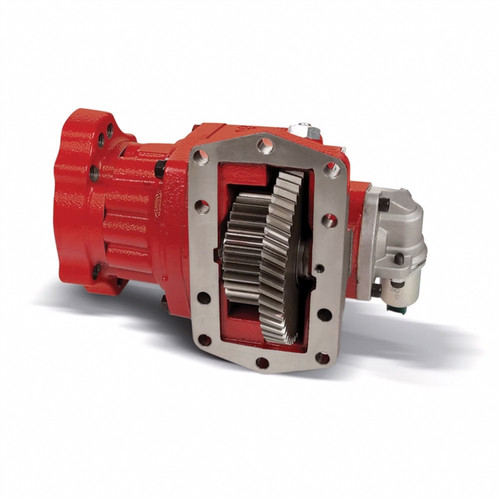

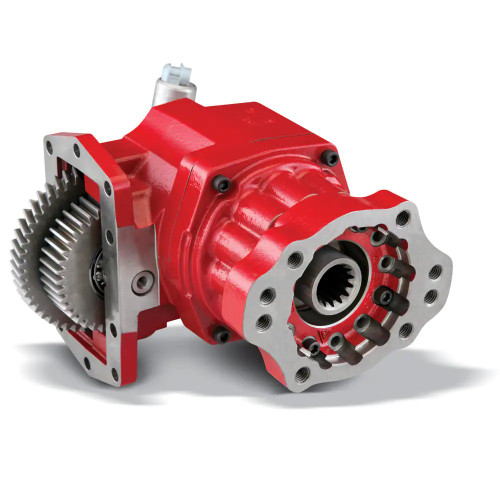

The Chelsea 281 Series Power Take-Off, part number 281GPFJW-B5RY or 281GPFJWB5RY, is a hydraulically shifted (PowerShift) PTO built for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar transmissions. The 281 Series is an evolution of the top-selling 280 Series, with a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap to improve clamp load, and clutch pack steel discs that are 80% thicker to resist premature tooth wear. Nine speed ratios cover both low and high ranges. Wet spline lubrication provides 7 to 10 times greater shaft life. SmartStart reduces shock load at engagement; Electronic Overspeed Control (EOC) protects driven equipment. A genuine Chelsea part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.

Features

Hydraulic PowerShift (hot shift) operation for use with automatic transmissions
10-bolt aperture mounting, compatible with Allison and Caterpillar transmissions
Ductile iron bearing cap, 117% stronger than gray iron predecessor
O-ring sealing configuration between housing and bearing cap improves clamp load and reduces vibrational effects
Enhanced clutch pack with 80% thicker steel discs to resist premature tooth wear
Nine speed ratios including low and high speeds; wet spline lubrication option extends shaft life 7 to 10 times
SmartStart reduces start-up shock load; Electronic Overspeed Control (EOC) protects driven equipment

Tech Specs

  • Mounting Type: 10-Bolt
  • Shift Type: PowerShift (Hydraulic Hot Shift)
  • Continuous Operation: Yes
  • Transmission Compatibility: Allison, Caterpillar (automatic transmissions with 10-bolt aperture)
  • Output Types: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
  • Speeds: Nine speed ratios (low and high range)
  • Lubricant Options: Pressure Lube (P), Wet Spline (W)
  • Markets: Fire and Rescue, Truck Cranes, Pumper Cleaner, Refuse

Additional Information

Chelsea PTO 281 Series model break down

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
