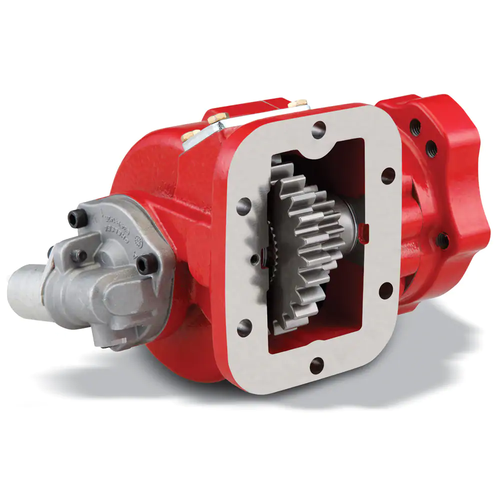

The Chelsea 282GKAJX-15RY is a medium-duty Power Take-Off assembly from the Chelsea 282 Series, a hot-shift PTO line designed for demanding mobile equipment applications. The 282 Series supports intermittent torque ratings of 201 to 300 lb-ft (401 to 500 Nm) and mounts via an 8-bolt pattern. Shift options include pneumatic and PowerShift (pneumatic/hydraulic), giving this series nine speed ratios and eighteen shift configurations. Typical applications include aerial equipment, towing and recovery, construction equipment, water trucks, and fuel oil delivery trucks. Part number 282GKAJX-15RY is also referenced as 282GKAJX15RY. Call us to confirm proper fit for your transmission and application.
Features
Chelsea 282 Series medium-duty hot-shift Power Take-Off
8-bolt mounting configuration
Pneumatic and PowerShift (pneumatic/hydraulic) shift options
Intermittent torque rating: 201 to 300 lb-ft (401 to 500 Nm)
Nine available speed ratios across eighteen shift configurations
Suited for aerial, towing and recovery, construction, water truck, and fuel oil delivery applications
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Pneumatic, PowerShift (Pneumatic/Hydraulic)
- Intermittent Torque: 201 to 300 lb-ft (401 to 500 Nm)
- Output Shaft Type: Round Shaft (1-1/4 in. with 5/16 in. key) or Round Shaft (1 in. with 1/4 in. key) - series options
- Shaft Power: 29 HP at 500 RPM / 57 HP at 1000 RPM
- Speed Ratios Available: 9
- Shift Configurations Available: 18
- Series: Chelsea 282 Series
