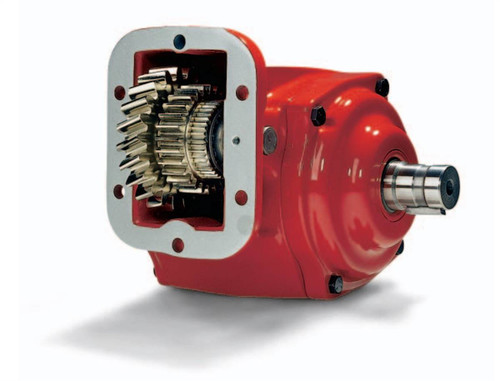

The Chelsea 282XGAJX-P3RB or 282XGAJXP3RB is a medium-duty hot shift Power Take-Off assembly from the Chelsea 282 Series. The 282 Series mounts via an 8-bolt pattern and is available with pneumatic or hydraulic (PowerShift) shift options. The series supports intermittent torque ratings from 201 to 300 lb-ft (401 to 500 Nm) and output shaft configurations including a 1-1/4 in. round shaft with 5/16 in. key and a 1 in. round shaft with 1/4 in. key. Shaft power output reaches 57 HP at 1,000 RPM. Common applications across the 282 Series include aerial, towing and recovery, construction equipment, water trucks, and fuel oil delivery. Pro Gear and Transmission carries this genuine Chelsea part - call us to confirm proper fit for your application.
Features
Chelsea 282 Series medium-duty hot shift PTO
8-bolt mounting pattern
Pneumatic or hydraulic (PowerShift) shift options
Intermittent torque: 201 to 300 lb-ft (401 to 500 Nm)
Output shaft options: 1-1/4 in. round with 5/16 in. key, or 1 in. round with 1/4 in. key
Suited for aerial, towing and recovery, construction, water truck, and fuel oil delivery applications
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Pneumatic or Hydraulic (PowerShift)
- Intermittent Torque: 201 to 300 lb-ft (401 to 500 Nm)
- Output Shaft Options: 1-1/4 in. round shaft with 5/16 in. key; 1 in. round shaft with 1/4 in. key
- Shaft Power: 29 HP at 500 RPM, 57 HP at 1,000 RPM (21 kW at 500 RPM, 43 kW at 1,000 RPM)
- Output Power: 56+ HP (41 to 50 kW)
- Series: Chelsea 282
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
