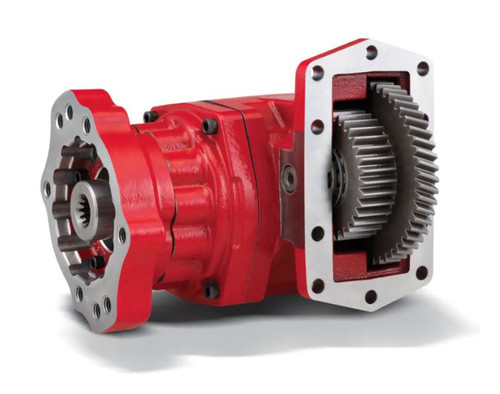

The Chelsea 288 Series Power Take-Off Assembly, part number 288GDKVW-M8RF or 288GDKVWM8RF, is a heavy-duty 10-bolt constant mesh PTO built on the 281 Series platform. It delivers a single continuous duty torque rating of up to 390 lb-ft, making it well suited for demanding applications in refuse, aerial, vacuum, and snow and ice equipment. Ductile iron bearing caps are 117% stronger than gray iron, and an O-ring sealing configuration between the housing and bearing cap improves clamp load while reducing vibration-related wear. The standard output shaft uses a positive stop design for driveline outputs, protecting oil seals from coupling damage. Nine speed ratios cover both low and high speed requirements. The optional Wet Spline Lubrication configuration extends pump shaft life by 7 to 10 times compared to dry-spline setups. A hydraulic hose is included. The 288 Series replaces the Chelsea 287 Series PTO. Call us to confirm proper fit for your specific transmission and application.
Features
10-Bolt constant mesh mounting on a cast iron housing
Single continuous duty torque rating up to 390 lb-ft
Ductile iron bearing caps rated 117% stronger than gray iron
O-ring seal between housing and bearing cap reduces vibration effects and improves clamp load
Positive stop output shaft protects oil seals from driveline coupling damage
Wet Spline Lubrication option extends pump shaft life 7 to 10 times; nine speed ratios including low and high speeds; hydraulic hose included
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh
- Output Shaft Type: Round Shaft with 1-1/4" Key
- Continuous Duty Torque: Up to 390 lb-ft
- Speed Ratios: Nine (including low and high speeds)
- Lubrication Options: Pressure Lube (P) or Wet Spline (W)
- Series: Chelsea 288 Series (replaces 287 Series)
- Applications: Refuse, aerial, vacuum, snow and ice equipment
Additional Information
Parts Manual: Chelsea 288 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
