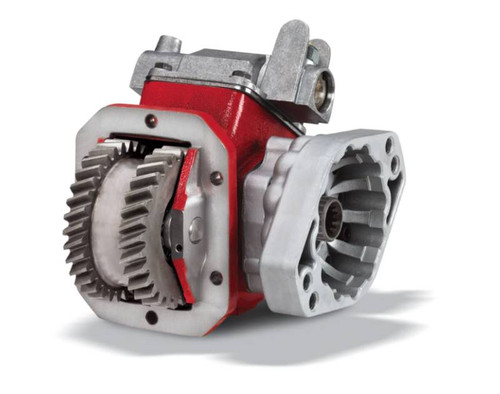

Genuine Chelsea PTO Assembly P/N: 290XQHUX-A3XK or 290XQHUXA3XK, ready to ship worldwide. For help on your Chelsea PTO parts, please call one of our experts!
Features
Deep reach housing design eliminates the need for special adapters
Rugged cast iron housing
Torque ratings up to 175 lbs-ft
Tech Specs
- Intermittent Torque: 101-200 lb-ft, 201-300 Nm, 175 (Check Application Pages for Actual Torque Ratings) lb-ft, 237 (Check Application Pages for Actual Torque Ratings) Nm
- Transmission Manufacturer: ZF, Volvo/Mack, Other, Eaton/Fuller
- Output Power: 26-35 HP, 21-30 kW
- Output Shaft Type: 1-1/4" Round, 1-1/4" Round w/key
- Mounting Type: 6-Bolt
- Shift Type: Mechanical
- Shaft Power: 500 RPM: 17, 1000 RPM: 33 HP, 500 RPM: 12, 1000 RPM: 25 kW
- Weight: 37 lb, 16.8 kg
