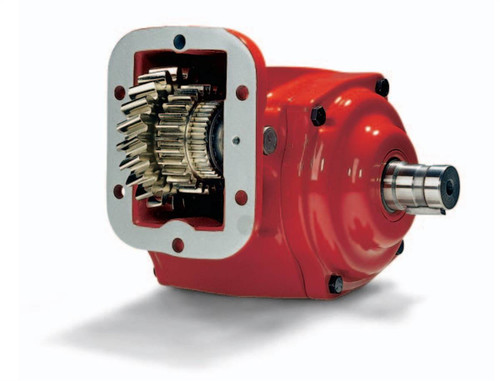

The Chelsea 442 Series Power Take-Off, part number 442LUKHX-P6XK or 442LUKHXP6XK, is a 6-bolt mount PTO designed for light-to-medium duty vocational truck applications. This unit runs an air shift actuation, a 0.391:1 gear ratio, and a 1-1/4" round standard output shaft. Mounting is via standard mount with metric studs. The no-pressure-lube configuration keeps the lubrication setup straightforward. The cast iron housing and tapered cone output shaft bearings are characteristic of the 442 Series, which also offers 360-degree rotatable output flanges for clearance flexibility. Typical applications in this series include dump trucks, tow trucks, and service trucks. Call us to confirm proper fit for your specific transmission.
Features
Air shift actuation for reliable remote engagement
0.391:1 gear ratio for appropriate output speed matching
1-1/4" round standard output shaft
Standard 6-bolt mount with metric studs
Cast iron housing with tapered cone output shaft bearings
Greaseable output shafts and rotatable flanges for installation flexibility
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
