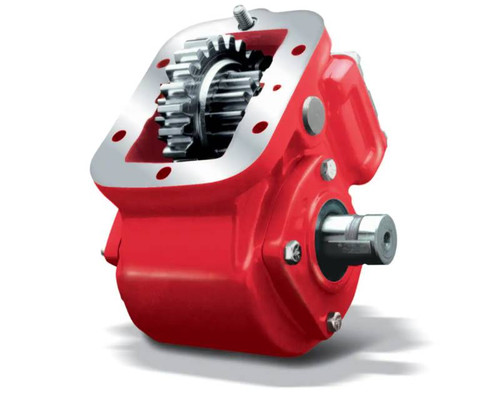

The Chelsea 442 Series Power Take-Off, part number 442XRESX-A3XJ or 442XRESXA3XJ, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit runs a 0.391:1 gear ratio with air shift actuation, a 1-1/4" round standard output shaft, and standard mount with metric studs. The housing requires no pressure lubrication. Tapered cone bearings on the output shaft and a cast iron housing give the 442 Series its class-leading torque capacity. The low-profile shift cover aids installation in tight spaces, and the rotatable output flange simplifies routing in your specific chassis. Call us to confirm proper fit for your application.
Features
Chelsea 442 Series, 6-bolt standard mount with metric studs
Air shift actuation
0.391:1 gear ratio
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings on the output shaft
Low-profile shift cover; 360-degree rotatable output flange for clearance flexibility
Tech Specs
- Product Series: 442
- Gear Ratio: 0.391:1
- Shift Type: Air Shift
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Output Shaft: 1-1/4" Round Standard Shaft
- Input Gear Designator: AH
- Assembly: 3
- Lubricant: No Pressure Lube
