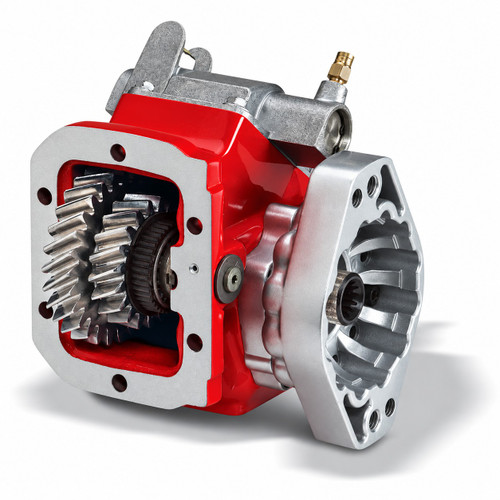

The Chelsea 442 Series Power Take-Off, part number 442XRJWX-V5XJ or 442XRJWXV5XJ, is a 6-bolt mount PTO built around a cast iron housing with tapered cone bearings on the output shaft. This unit runs an air shift actuator. Mounting uses the standard configuration, and the unit operates without a pressure lube system. The 442 Series is suited to tow trucks, dump trucks, service trucks, and small aerial trucks. Call us to confirm proper fit for your transmission and application.
Features
Air shift actuator for reliable pneumatic engagement
6-bolt standard mount
Cast iron housing with tapered cone bearings
No-pressure-lube design
Tech Specs
- Product Series: 442
- Mounting Option: Standard Mount (X)
- Gear Ratio Code: R (22/24)
- Input Gear Designator: JW
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift without Installation Kit (V)
- Assembly Arrangement: 5
- Output Option: XJ
