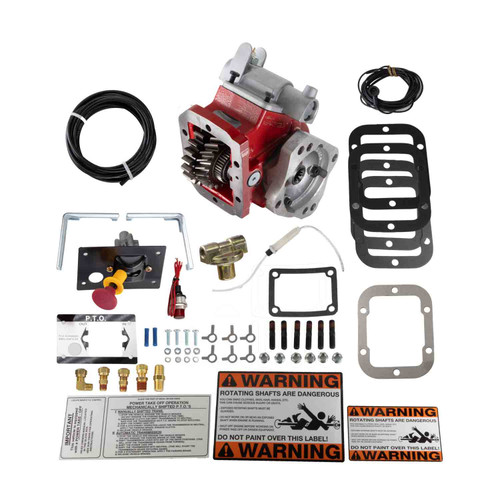

The Chelsea 442 Series Power Take-Off, part number 442XSAPX-A3XK or 442XSAPXA3XK, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit runs an air shift mechanism, a 0.391:1 gear ratio, and a 1-1/4" round standard output shaft. Mounting uses standard metric studs. The no-pressure-lube configuration simplifies installation where a pressurized lube circuit is not available. The cast iron housing and tapered cone output shaft bearings are characteristic of the 442 Series and contribute to its intermittent torque rating of up to 250 lb-ft for the series. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 442 Series, 6-bolt mounting with metric studs
Air shift actuation
0.391:1 gear ratio
1-1/4" round standard output shaft, greaseable for extended service life
Cast iron housing with tapered cone bearings on the output shaft
Low-profile shift cover with 360-degree rotatable output flange for clearance flexibility
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
