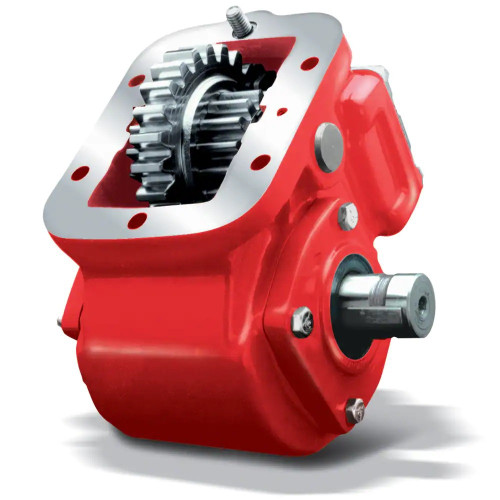

The Chelsea 442 Series Power Take-Off, part number 442XSBZX-Y3XD or 442XSBZXY3XD, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, service trucks, and tow trucks. This unit carries a 0.391:1 gear ratio and uses air shift actuation. Mounting is standard configuration with metric studs. The 1-1/4" round standard output shaft (XD option) is greaseable for extended service life. The cast iron housing and tapered cone bearings are characteristic of the 442 Series, which supports up to 250 lb-ft intermittent torque and up to 48 HP shaft power at 1,000 RPM across the series. No pressure lube is required. Call us to confirm proper fit for your specific transmission.
Features
Chelsea 442 Series, 6-bolt standard mount with metric studs
Gear ratio: 0.391:1
Shift type: Air Shift
Output: 1-1/4" round standard shaft (greaseable for extended service life)
Cast iron housing with tapered cone bearings
Low-profile shift cover; rotatable output flanges for improved clearance
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
