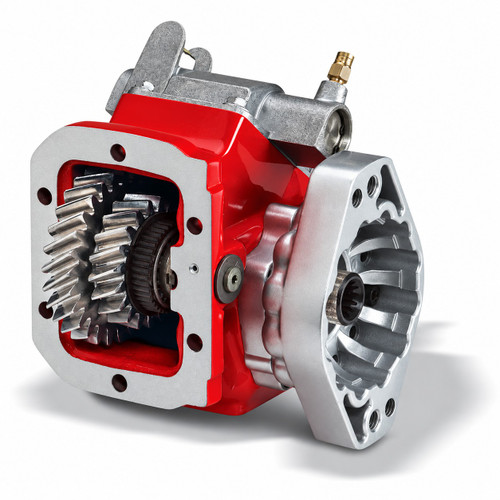

The Chelsea 442 Series Power Take-Off, part number 442XUBMX-W3XK or 442XUBMXW3XK, is a 6-bolt mount PTO built for light-to-medium duty truck applications including dump trucks, tow trucks, and service trucks. This unit runs an air shift, a 0.391:1 gear ratio, and a 1-1/4" round standard output shaft. Mounting uses a standard configuration with metric studs. No pressure lube is required. The cast iron housing and tapered cone bearings on the output shaft contribute to the 442 Series' class-leading torque rating and extended service life. Call us to confirm proper fit for your transmission and application.
Features
Chelsea 442 Series, 6-bolt standard mount with metric studs
Air shift operation
0.391:1 gear ratio
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings on output shaft
No pressure lube required
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
