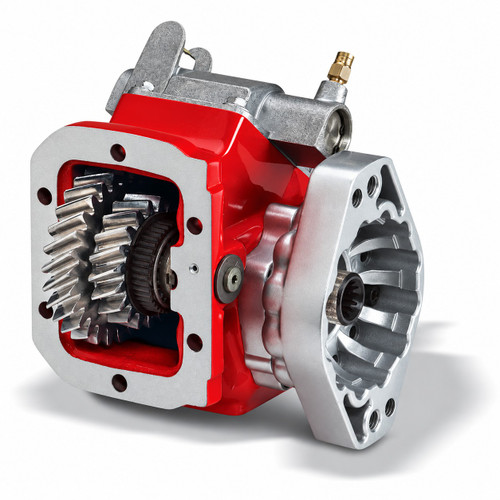

The Chelsea 442 Series Power Take-Off, part number 442XWBLX-W6XD or 442XWBLXW6XD, is a 6-bolt standard mount PTO configured with cable shift actuation. The output is a 1-1/4" round standard shaft, and the unit runs without a pressure lube system. Mounting uses a standard mount. The 442 Series is built around a cast iron housing with tapered cone bearings on the output shaft, making it a dependable choice for tow trucks, service trucks, dump trucks, and aerial applications. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 442 Series, 6-bolt standard mount
Shift type: Cable shift
Output: 1-1/4" round standard shaft
Cast iron housing with tapered cone bearings on the output shaft
Tech Specs
- Product Series: 442
- Mounting Type: 6-Bolt
- Mounting Option: Standard Mount (X)
- Gear Ratio Code: W (26/17)
- Input Gear Designator: BL
- Lube Option: No Pressure Lube (X)
- Shift Option: Cable (Wire) Shift (W)
- Assembly Arrangement: 6
- Output Option: 1-1/4" Round Standard Shaft with 5/16" Key (XD)
