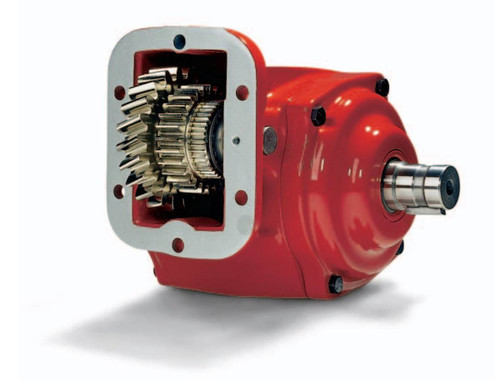

The Chelsea 442 Series Power Take-Off Assembly, part number 442XWFMX-A5XD or 442XWFMXA5XD, is a 6-bolt transmission-mount PTO built around a cast iron housing with tapered cone bearings on the output shaft. This unit carries a 0.391:1 gear ratio, uses air shift actuation, and mounts via a standard configuration with metric studs. The output is a 1-1/4" round standard shaft with no pressure lube required. The 442 Series is engineered for light-to-medium duty vocational applications including dump trucks, service trucks, tow trucks, and aerial units. Call us to confirm proper fit for your transmission application.
Features
Product Series: Chelsea 442
Gear Ratio: 0.391:1
Shift Type: Air Shift
Mounting: Standard Mount with Metric Studs (6-Bolt)
Output: 1-1/4" Round Standard Shaft
Lubricant: No Pressure Lube
Housing: Cast iron with tapered cone bearings on output shaft
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
