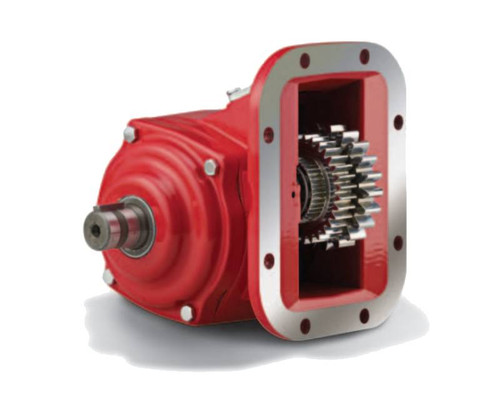

The Chelsea 442 Series Power Take-Off Assembly, part number 442XXHLX-P5RA or 442XXHLXP5RA, is a 6-bolt mount PTO designed for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit runs a 0.391:1 gear ratio with air shift actuation and delivers power through a 1-1/4" round standard output shaft. Mounting is standard with metric studs. The unit uses no pressure lube (dry sump configuration). The cast iron housing and tapered cone bearings on the output shaft give the 442 Series a strong torque rating across its application range. Call us to confirm proper fit for your transmission.
Features
Chelsea 442 Series, 6-bolt transmission mount with metric studs
Air shift actuation for remote engagement
0.391:1 gear ratio (input gear designator AH)
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings on the output shaft
No pressure lube (dry sump) configuration
Tech Specs
- Product Series: 442
- Gear Ratio: 0.391:1
- Input Gear Designator: AH
- Mounting Option: Standard Mount with Metric Studs
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
