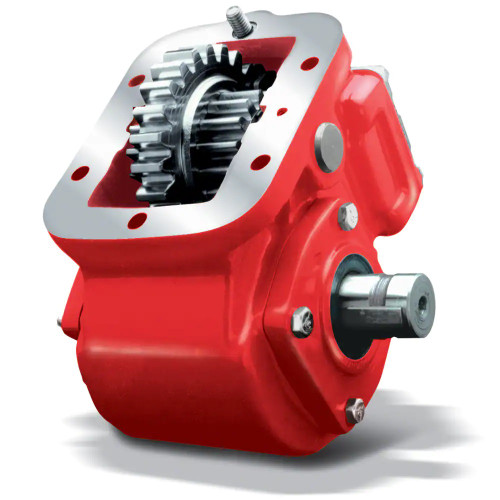

The Chelsea 442 Series Power Take-Off, part number 442ZUJBX-W3XD or 442ZUJBXW3XD, is a 6-bolt mount PTO built for light-to-medium duty vocational applications. This unit runs a 0.391:1 gear ratio with air shift activation and delivers power through a 1-1/4" round standard output shaft. Mounting uses a standard configuration with metric studs. The output circuit runs without pressure lube. A cast iron housing and tapered cone bearings on the output shaft provide durability across demanding cycles. The 442 Series suits tow trucks, service trucks, dump trucks, and aerial units. Call us to confirm proper fit for your specific transmission and application.
Features
Product Series: Chelsea 442
Gear Ratio: 0.391:1
Shift Type: Air Shift
Output Shaft: 1-1/4" Round Standard Shaft
Mounting: Standard Mount with Metric Studs (6-Bolt)
Lubrication: No Pressure Lube
Housing: Cast iron with tapered cone bearings on the output shaft
Tech Specs
- Product Series: 442
- Gear Ratio: 0.391:1
- Shift Type: Air Shift
- Mounting: Standard Mount with Metric Studs (6-Bolt)
- Output Shaft: 1-1/4" Round Standard Shaft
- Lubrication: No Pressure Lube
- Input Gear Designator: AH
- Assembly: 3
