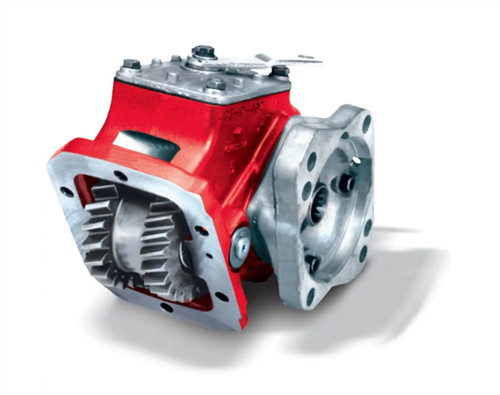

The Chelsea 447 Series Power Take-Off Assembly, part number 447GWGPX-A5XR or 447GWGPXA5XR, is a 6-bolt mount PTO built around a one-piece input gear with a space between its two sets of gear teeth. That design eliminates interference problems inside the transmission PTO opening, making it compatible with a wide variety of transmissions including Eaton/Fuller and ZF applications. Shift is wire/cable or mechanical. The output shaft is a 1-1/4" round with key. Series-rated intermittent torque runs 201-300 lb-ft (301-400 Nm); shaft power is rated at 21 HP at 500 RPM and 43 HP at 1,000 RPM. Strong tapered bearings replace the needle bearings used in earlier designs for greater load-bearing capability. Call us to confirm proper fit for your application.
Features
6-bolt mounting, no adapter plate required
Wire/cable or mechanical shift type
1-1/4" round output shaft with key
One-piece input gear eliminates interference problems inside the transmission PTO opening
Compatible with Eaton/Fuller, ZF, and other transmission manufacturers
Series-rated shaft power: 21 HP at 500 RPM, 43 HP at 1,000 RPM
Tech Specs
- Intermittent Torque: 201-300 lb-ft (301-400 Nm); 225 lb-ft / 305 Nm (check application pages for actual torque ratings)
- Continuous Torque: De-rate intermittent torque rating by 30% (check application pages for actual torque ratings)
- Shift Type: Wire/Cable or Mechanical
- Output Power: 36-45 HP (31-40 kW)
- Mounting Type: 6-Bolt
- Output Shaft Type: 1-1/4" Round with Key
- Shaft Power: 21 HP at 500 RPM, 43 HP at 1,000 RPM (16 kW at 500 RPM, 32 kW at 1,000 RPM)
- Compatible Transmission Manufacturers: Eaton/Fuller, ZF, Other
