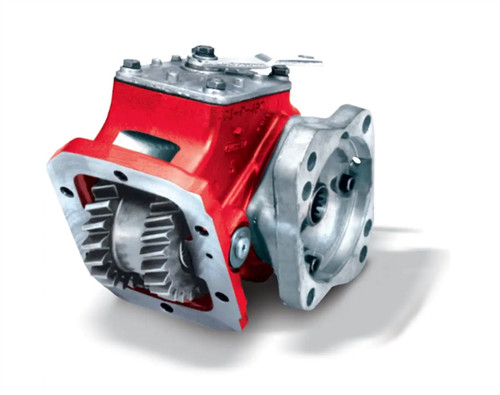

The Chelsea 447 Series Power Take-Off Assembly, part number 447KUESX-W5XD or 447KUESXW5XD, is engineered specifically to eliminate interference problems inside the transmission PTO opening. A one-piece input gear with a space between its two sets of gear teeth clears adjacent gear interference on a wide variety of transmissions, removing the need for an adapter plate. The 447 Series mounts via a 6-bolt pattern and supports wire/cable or mechanical shift. Output shaft is a 1-1/4" round design with keyway. Intermittent torque ratings for this series range from 201 to 300 lb-ft (301 to 400 Nm); check application pages for the actual torque rating for your specific installation. Shaft power is 21 HP at 500 RPM and 43 HP at 1000 RPM. Compatible with Eaton/Fuller, ZF, and other transmission manufacturers. Call us to confirm proper fit for your application.
Features
Chelsea 447 Series, part number 447KUESX-W5XD or 447KUESXW5XD
6-bolt mounting pattern, no adapter plate required
Wire/cable or mechanical shift type
1-1/4" round output shaft with keyway
Intermittent torque: 201-300 lb-ft (301-400 Nm); shaft power 21 HP at 500 RPM, 43 HP at 1000 RPM
Compatible with Eaton/Fuller, ZF, and other transmission manufacturers
Tech Specs
- Intermittent Torque: 201-300 lb-ft (301-400 Nm); 225 lb-ft / 305 Nm (check application pages for actual torque rating)
- Continuous Torque: De-rate intermittent torque rating by 30% (check application pages for actual torque rating)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 36-45 HP (31-40 kW)
- Shaft Power: 21 HP at 500 RPM, 43 HP at 1000 RPM (16 kW at 500 RPM, 32 kW at 1000 RPM)
- Mounting Type: 6-Bolt
- Output Shaft Type: 1-1/4" Round with Key
- Transmission Compatibility: Eaton/Fuller, ZF, Other
