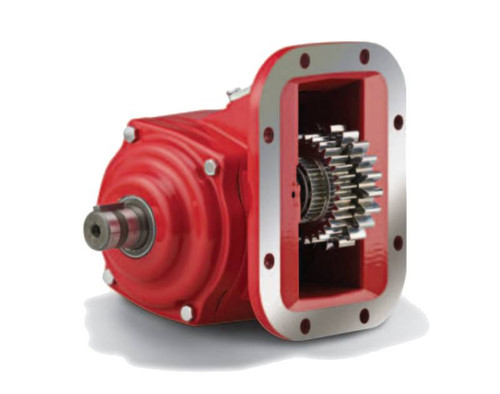

The Chelsea 447 Series Power Take-Off Assembly, part number 447KUITX-A5XK or 447KUITXA5XK, is a 6-bolt mounted PTO compatible with Eaton/Fuller, ZF, and a range of other transmission manufacturers. It uses a wire/cable or mechanical shift and delivers up to 43 HP (32 kW) at 1,000 RPM through a 1-1/4" round output shaft (with key option available). The 447 Series is built around a one-piece input gear with a space between its two gear-tooth sets, a design that prevents adjacent gear interference inside the transmission PTO opening without requiring an adapter plate. Tapered bearings replace needle bearings for greater load capacity. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 447 Series, part number 447KUITX-A5XK or 447KUITXA5XK
6-bolt mounting, compatible with Eaton/Fuller, ZF, and other transmission manufacturers
Wire/cable or mechanical shift options
1-1/4" round output shaft; keyed variant available
Shaft power output: 21 HP (16 kW) at 500 RPM, 43 HP (32 kW) at 1,000 RPM
Intermittent torque rating: 201-300 lb-ft (301-400 Nm); see application pages for confirmed ratings
One-piece input gear with spaced tooth sets eliminates internal transmission interference without an adapter plate
Strong tapered bearings for greater load-bearing capability versus needle bearings
Tech Specs
- Intermittent Torque: 201-300 lb-ft (301-400 Nm); see application pages for confirmed ratings
- Shift Type: Wire/Cable or Mechanical
- Output Power: 36-45 HP (31-40 kW)
- Shaft Power: 21 HP (16 kW) at 500 RPM; 43 HP (32 kW) at 1,000 RPM
- Mounting Type: 6-Bolt
- Output Shaft Type: 1-1/4" Round; 1-1/4" Round with Key
- Transmission Compatibility: Eaton/Fuller, ZF, Other
