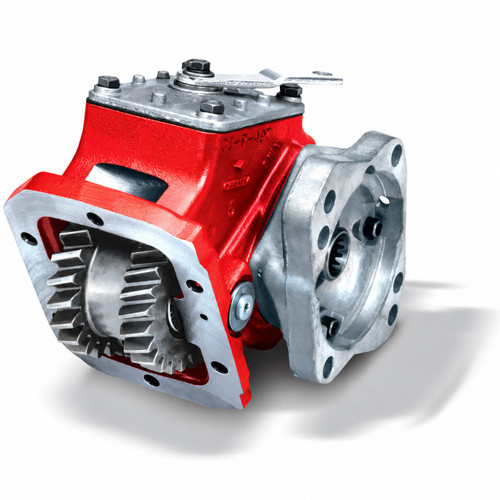

The Chelsea 447 Series Power Take-Off Assembly, part number 447XUITX-H3XD or 447XUITXH3XD, is a 6-bolt mounted PTO designed to eliminate internal interference problems across a wide variety of transmissions, including Eaton/Fuller and ZF applications. The 447 Series uses a one-piece input gear with a space between the two sets of gear teeth specifically to clear adjacent gear interference inside the transmission PTO aperture. Output shaft is a 1-1/4" round shaft with keyway. No shift assembly (ordered without a shifter). Intermittent torque rating runs 201-300 lb-ft (301-400 Nm), with actual ratings varying by application. Shaft power is rated at 21 HP at 500 RPM and 43 HP at 1000 RPM. For continuous-duty use, apply a 30% torque de-rate per Chelsea application guidelines. Call us to confirm proper fit for your specific transmission and application.
Features
6-bolt mounting - no adapter plate required for most applications
One-piece input gear with spaced gear teeth eliminates adjacent gear interference inside the transmission PTO aperture
Shift type: no shift assembly
1-1/4" round output shaft with keyway
Intermittent torque: 201-300 lb-ft (301-400 Nm) - check application pages for actual rating
Shaft power: 21 HP at 500 RPM, 43 HP at 1000 RPM (30% de-rate for continuous-duty use)
Tech Specs
- Intermittent Torque: 201-300 lb-ft / 301-400 Nm (Check Application Pages for Actual Torque Ratings)
- Continuous Torque: De-rate intermittent rating by 30% (Check Application Pages for Actual Torque Ratings)
- Mounting Option: Standard Mount (X)
- Gear Ratio Code: U
- Input Gear Designator: IT
- Lube Option: No Pressure Lube (X)
- Shift Option: No Shift Assembly (H)
- Assembly Arrangement: 3
- Output Option: 1-1/4" Round Standard Shaft with 5/16" Key (XD)
- Output Power: 36-45 HP / 31-40 kW
- Shaft Power: 21 HP at 500 RPM, 43 HP at 1000 RPM / 16 kW at 500 RPM, 32 kW at 1000 RPM
- Mounting Type: 6-Bolt
- Compatible Transmissions: Eaton/Fuller, ZF, and other manufacturers
