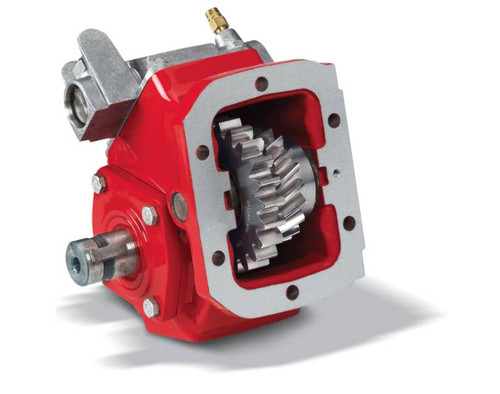

The Chelsea 489 Series Power Take-Off Assembly, part number 489GHAHX-A3AZ or 489GHAHXA3AZ, is a wire/cable mechanical-shift PTO built for 8-bolt manual transmission openings on Eaton/Fuller, Volvo/Mack, and other compatible transmissions. The one-piece cast iron housing bolts directly to the 8-bolt aperture, eliminating the adapter plate and reducing potential leak paths. Intermittent torque capacity for this series is 250 lb-ft (339 Nm); shaft power is 24 HP at 500 RPM and 48 HP at 1,000 RPM. The 1-1/4" round output shaft with key accepts a wide range of hydraulic pump connections. Tapered bearings replace needle bearings for improved load handling. An electric-over-air shift option and 27 output configurations make the 489 a versatile fit across utility, dump, snow/ice, and fire-rescue applications. Call us to confirm proper fit for your transmission.
Features
8-bolt one-piece cast iron housing mounts directly to transmission without an adapter plate
Wire/cable mechanical shift with electric-over-air shift option available
250 lb-ft (339 Nm) intermittent torque capacity; 24 HP at 500 RPM, 48 HP at 1,000 RPM
1-1/4" round output shaft with key; greaseable output options to reduce spline fretting and corrosion
Kit-style design with internal parts common to the Chelsea 442 Series simplifies service
Compatible with Eaton/Fuller, Volvo/Mack, and other 8-bolt manual transmission applications
Tech Specs
- PRODUCT SERIES: 489
- MOUNTING TYPE: 8-Bolt (direct-mount, one-piece cast iron housing, no adapter plate required)
- SHIFT TYPE: Wire/Cable Mechanical
- INTERMITTENT TORQUE: 250 lb-ft / 339 Nm (check application pages for actual torque ratings)
- CONTINUOUS TORQUE: De-rate intermittent torque rating by 30% (check application pages for actual torque ratings)
- OUTPUT POWER: 46-55 HP / 31-40 kW
- SHAFT POWER: 24 HP (500 RPM), 48 HP (1,000 RPM) / 18 kW (500 RPM), 36 kW (1,000 RPM)
- OUTPUT SHAFT TYPE: 1-1/4" Round with key
- TRANSMISSION MANUFACTURER: Eaton/Fuller, Volvo/Mack, and other compatible 8-bolt manual transmissions
- LUBRICANT: X = No Pressure Lube; P = Pressure Lube
