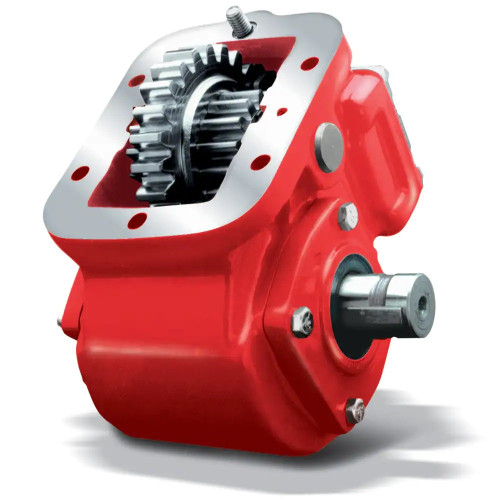

The Chelsea 489 Series Power Take-Off Assembly, part number 489KHAHX-A3RB or 489KHAHXA3RB, mounts directly to 8-bolt transmission openings on Eaton/Fuller, Volvo/Mack, and other compatible manual transmissions. The one-piece cast iron housing eliminates the need for an adapter plate, reducing potential leak paths and cutting installation time. Intermittent torque capacity for the 489 Series is 201-300 lb-ft (301-400 Nm), and the output is a rotatable SAE B 4-bolt flange with a 7/8" 13-tooth SAE B shaft. Shaft power is rated at 24 HP at 500 RPM and 48 HP at 1,000 RPM. Internal components are shared with the Chelsea 442 Series, and the kit-style design simplifies servicing. Suitable for aerial, dump truck, utility, snow and ice removal, and fire and rescue applications. Call us to confirm proper fit for your application.
Features
8-bolt one-piece cast iron housing mounts directly to compatible manual transmissions without an adapter plate
Air shift
Rotatable SAE B 4-bolt flange with a 7/8" 13-tooth SAE B shaft
Intermittent torque: 201-300 lb-ft (301-400 Nm); shaft power 24 HP at 500 RPM, 48 HP at 1,000 RPM
Internal parts common to the Chelsea 442 Series for broad parts availability
Kit-style construction for straightforward field servicing
Tech Specs
- PRODUCT SERIES: 489
- MOUNTING TYPE: 8-Bolt (direct to transmission, no adapter plate required)
- MOUNTING OPTION: Standard Mount without Stud Kit (K)
- GEAR RATIO CODE: H (23/35)
- INPUT GEAR DESIGNATOR: AH
- LUBE OPTION: No Pressure Lube (X)
- SHIFT OPTION: Air Shift (A)
- ASSEMBLY ARRANGEMENT: 3
- OUTPUT OPTION: Rotatable SAE B 4-Bolt Flange, SAE B Shaft (7/8" 13T) (RB)
- INTERMITTENT TORQUE: 201-300 lb-ft / 301-400 Nm (check application pages for actual torque ratings)
- SHAFT POWER: 24 HP (500 RPM) / 48 HP (1,000 RPM) | 18 kW (500 RPM) / 36 kW (1,000 RPM)
- OUTPUT POWER: 46-55 HP / 31-40 kW
- TRANSMISSION COMPATIBILITY: Eaton/Fuller, Volvo/Mack, and other manual transmissions with 8-bolt PTO aperture
