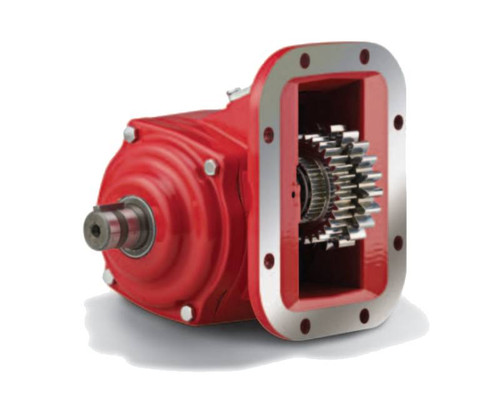

Chelsea 489QLLZX-V3XK or 489QLLZXV3XK is an 8-bolt power takeoff from the Chelsea 489 Series. It uses a wire/cable mechanical shift and a 1-1/4 in. round output shaft, with a keyed 1-1/4 in. round option available. Designed for Eaton/Fuller, Volvo/Mack, and other transmission applications, it delivers shaft power of 24 HP at 500 RPM and 48 HP at 1000 RPM. Intermittent torque falls in the 201-300 lb-ft range, with rated output of 46-55 HP. This is a kit-style PTO, so service is straightforward, and internal parts are common to the 442 Series. Confirm the correct torque rating against the application pages for your setup. Call us to confirm proper fit for your application.
Features
8-bolt mounting type, Chelsea 489 Series
Wire/cable mechanical shift
1-1/4 in. round output shaft, 1-1/4 in. round with key option
Shaft power: 24 HP at 500 RPM, 48 HP at 1000 RPM
Intermittent torque range 201-300 lb-ft; rated output 46-55 HP
Kit-style design with internal parts common to the 442 Series; fits Eaton/Fuller, Volvo/Mack and other transmissions
Tech Specs
- Product Series: 489
- Mounting Type: 8-Bolt
- Shift Type: Wire/Cable Mechanical
- Output Shaft Type: 1-1/4" Round, or 1-1/4" Round with key
- Intermittent Torque: 201-300 lb-ft (301-400 Nm); approx. 250 lb-ft / 339 Nm (check application pages for actual torque ratings)
- Output Power: 46-55 HP (31-40 kW)
- Shaft Power: 24 HP (18 kW) at 500 RPM; 48 HP (36 kW) at 1000 RPM
- Transmission Manufacturer: Eaton/Fuller, Volvo/Mack, Other
- Lubricant: X = No Pressure Lube (P = Pressure Lube on P-coded units)
Additional Information
Parts Manual: Chelsea 489 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
