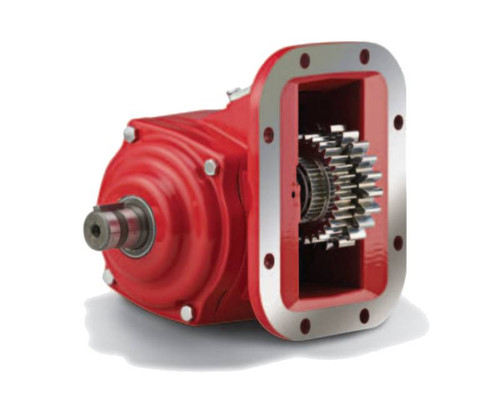

The Chelsea 489XLAHX-V3RA or 489XLAHXV3RA is a 489 Series Power Take-Off assembly designed for manual transmissions with an 8-bolt PTO mounting aperture, including Eaton/Fuller, Volvo/Mack, and other compatible units. The one-piece cast iron housing bolts directly to the transmission opening, eliminating the need for an adapter plate and reducing potential leak paths. Shift is air shift. The rotatable SAE B 2-bolt flange output with a 7/8" 13-tooth SAE B shaft accepts a range of output configurations, including Chelsea's 360-degree rotatable flange option. Intermittent torque capacity for the 489 Series is 201-300 lb-ft (301-400 Nm). Shaft power ratings are 24 HP at 500 RPM and 48 HP at 1,000 RPM. Call us to confirm proper fit for your transmission and application.
Features
8-bolt one-piece cast iron housing mounts directly to compatible manual transmissions - no adapter plate required
Air shift type; electric over air shift option also available in the 489 Series
Rotatable SAE B 2-bolt flange with a 7/8" 13-tooth SAE B shaft
Intermittent torque rating: 201-300 lb-ft (301-400 Nm) for the 489 Series
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Kit-style design with internal parts common to the Chelsea 442 Series for easier serviceability
Tech Specs
- Product Series: 489
- Mounting Type: 8-Bolt
- Mounting Option: Standard Mount (X)
- Gear Ratio Code: L (25/34)
- Input Gear Designator: AH
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift without Installation Kit (V)
- Assembly Arrangement: 3
- Output Option: Rotatable SAE B 2-Bolt Flange, SAE B Shaft (7/8" 13T) (RA)
- Intermittent Torque: 201-300 lb-ft (301-400 Nm) - Check Application Pages for Actual Torque Ratings
- Output Power: 46-55 HP (31-40 kW)
- Shaft Power: 24 HP (500 RPM), 48 HP (1,000 RPM) / 18 kW (500 RPM), 36 kW (1,000 RPM)
- Transmission Manufacturer Compatibility: Eaton/Fuller, Volvo/Mack, Other
