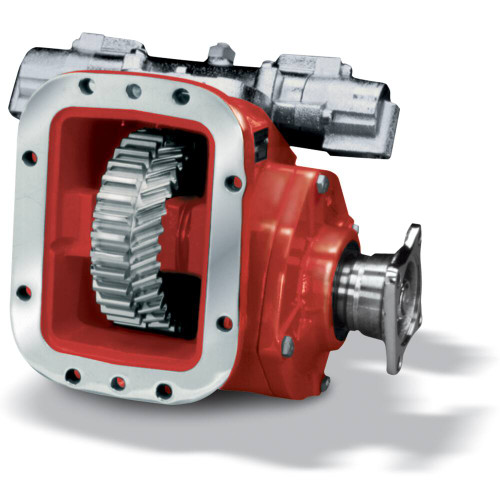

The Chelsea 489 Series Power Take-Off Assembly, part number 489XQAHX-V6XK or 489XQAHXV6XK, mounts directly to the 8-bolt transmission opening on most manual transmissions including Eaton Fuller, Volvo/Mack, and others. Its one-piece cast iron housing eliminates the need for an adapter plate, removing a common leak path. The 489 Series delivers the same intermittent torque capacity as the 442 Series (250 lb-ft / 339 Nm); this unit uses air shift. Output is an SAE B 2 or 4-bolt flange with a 7/8" 13-tooth SAE B shaft. Shaft power is rated at 24 HP at 500 RPM and 48 HP at 1,000 RPM. Strong tapered bearings replace needle bearings for greater load-bearing capability. Call us to confirm proper fit for your transmission and application.
Features
8-bolt one-piece cast iron housing mounts directly to transmission opening, no adapter plate needed
Air shift actuation
SAE B 2 or 4-bolt flange with a 7/8" 13-tooth SAE B shaft
Intermittent torque: 250 lb-ft (339 Nm); shaft power 24 HP at 500 RPM, 48 HP at 1,000 RPM
Internal parts common to the Chelsea 442 Series
Kit-style design for easier field servicing
Tech Specs
- Product Series: 489
- Mounting Type: 8-Bolt
- Mounting Option: Standard Mount (X)
- Gear Ratio Code: Q (19/24)
- Input Gear Designator: AH
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift without Installation Kit (V)
- Assembly Arrangement: 6
- Output Option: SAE B 2 or 4-Bolt Flange, SAE B Shaft (7/8" 13T) (XK)
- Intermittent Torque: 250 lb-ft (339 Nm) - Check Application Pages for Actual Torque Ratings
- Continuous Torque: De-rate torque rating 30% - Check Application Pages for Actual Torque Ratings
- Output Power: 46-55 HP (31-40 kW)
- Shaft Power: 24 HP (18 kW) at 500 RPM; 48 HP (36 kW) at 1,000 RPM
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, and other manual transmissions with 8-bolt PTO aperture
- Lubricant Type: X = No Pressure Lube, P = Pressure Lube
Additional Information
Parts manual and diagrams: Chelsea 489 Series PTO parts list with prices
