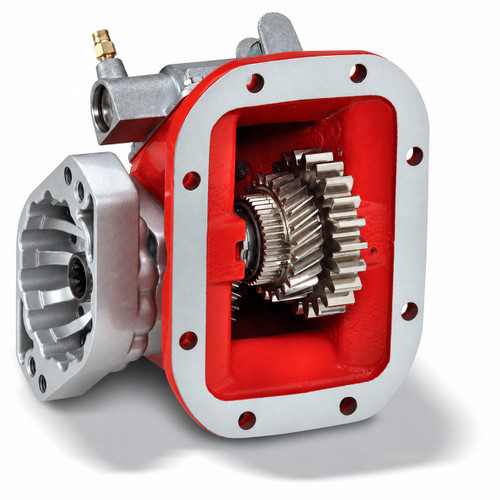

The Chelsea 489 Series Power Take-Off Assembly, part number 489ZFAHX-A3XD or 489ZFAHXA3XD, is an air-shift PTO designed for manual transmissions with an 8-bolt mounting aperture, including Eaton/Fuller, Volvo/Mack, and Tremec applications. The one-piece cast iron housing bolts directly to the transmission opening without an adapter plate, eliminating a potential leak path while delivering the same 250 lb-ft intermittent torque capacity as the Chelsea 442 Series. Output is through a 1-1/4" round shaft with key. Shaft power rates at 24 HP at 500 RPM and 48 HP at 1,000 RPM. An electric-over-air shift option is available within the series. Call us to confirm the correct configuration for your transmission.
The Chelsea 489 Series is suited for aerial, vocational, and municipal equipment applications including utility trucks, snow and ice removal, fire and rescue, and dump truck and trailer service. The series offers eleven internal speed ratios along with 27 output configurations, including a 360-degree rotatable flange. Strong tapered bearings replace needle bearings for greater load-bearing capability under demanding duty cycles.
Features
8-bolt one-piece cast iron housing mounts directly to transmission opening, no adapter plate required
Air shift; electric-over-air shift option also available in the 489 Series
250 lb-ft intermittent torque capacity, matching the Chelsea 442 Series rating
1-1/4" round output shaft with key
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Kit-style design with internal parts common to the 442 Series simplifies service
Tech Specs
- Product Series: 489
- Mounting Type: 8-Bolt
- Mounting Option: Deep Mount (Z)
- Gear Ratio Code: F (21/37)
- Input Gear Designator: AH
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift (A)
- Assembly Arrangement: 3
- Output Option: 1-1/4" Round Standard Shaft with 5/16" Key (XD)
- Intermittent Torque: 250 lb-ft (339 Nm) - check application pages for actual torque rating
- Continuous Torque: De-rate intermittent rating by 30% - check application pages for actual torque rating
- Output Power: 46-55 HP (31-40 kW)
- Shaft Power: 24 HP (18 kW) at 500 RPM; 48 HP (36 kW) at 1,000 RPM
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, Tremec, and other manual transmissions with 8-bolt aperture
Additional Information
The Chelsea 489 Series is suited for aerial, vocational, and municipal equipment applications including utility trucks, snow and ice removal, fire and rescue, and dump truck and trailer service. The series offers eleven internal speed ratios along with 27 output configurations, including a 360-degree rotatable flange. Strong tapered bearings replace needle bearings for greater load-bearing capability under demanding duty cycles.
